Description
General part information

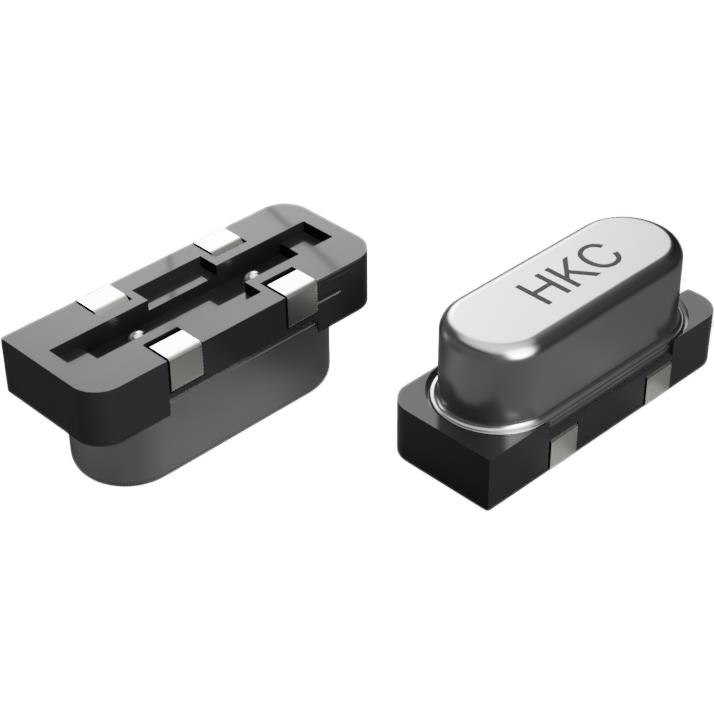

49SMS70800BMDALFGEF-TR
8 MHz ±30ppm Crystal 15pF 50 Ohms HC-49S 4-SMD
Technical Specifications
Parameters and characteristics for this part
| Specification | 49SMS70800BMDALFGEF-TR |
|---|---|
| ESR (Equivalent Series Resistance) | 50 Ohm |
| Frequency | 8 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.177 in |
| Load Capacitance | 15 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | HC-49S 4-SMD |
| Size / Dimension Length | 0.472 in |
| Size / Dimension Width | 0.193 in |
| Type | MHz Crystal |
