UTS1JC1210S
ActiveSouriau-Sunbank by Eaton

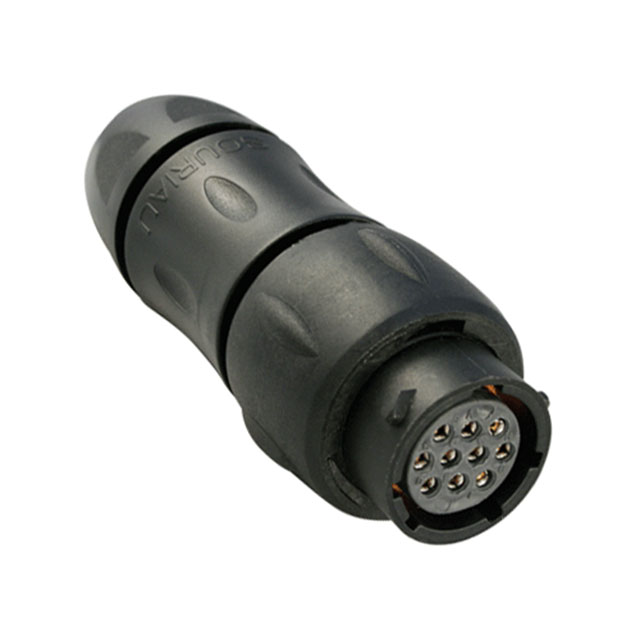

CONN RCP HSG FMALE 10POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
UTS1JC1210S
ActiveSouriau-Sunbank by Eaton
CONN RCP HSG FMALE 10POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UTS1JC1210S |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 20 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Housing Color | Black |
| Ingress Protection | IP68, IP69K |
| Insert Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 10 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.40 | |
| 10 | $ 17.87 | |||
| 25 | $ 17.10 | |||
| 50 | $ 16.54 | |||
| 100 | $ 15.99 | |||
| 250 | $ 15.11 | |||
| 500 | $ 14.67 | |||
Description
General part information
UTS1JC1210S
10 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell
Documents
Technical documentation and resources
No documents available
