Connectors, Interconnects

87270-2

Active

TE Connectivity Raychem Cable Protection

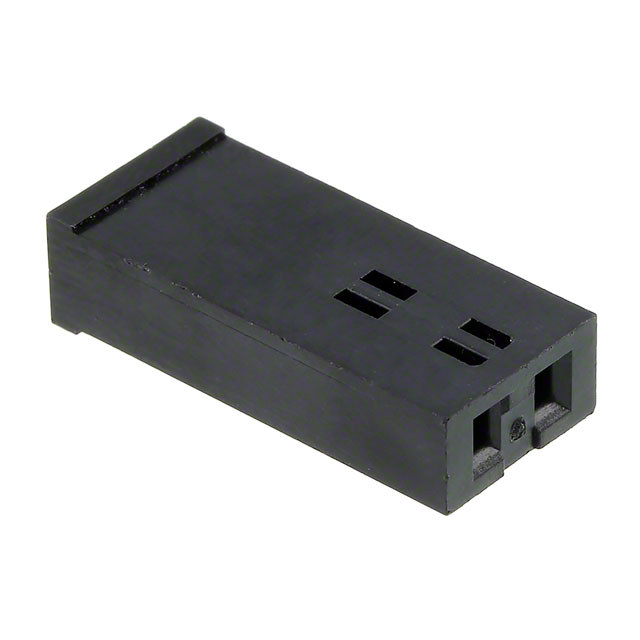

CONN RCPT HSG 2POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Connectors, Interconnects

87270-2

Active

TE Connectivity Raychem Cable Protection

CONN RCPT HSG 2POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	87270-2

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C

87270 Series

Part	Number of Positions	Insulation Material	Contact Type	Mounting Type	Color	Number of Rows	Contact Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Note	Pitch [x]	Pitch [x]	Features
TE Connectivity Raychem Cable Protection 87270-7	10	Thermoplastic	Female Socket	Free Hanging (In-Line)	Black	1	Crimp	Receptacle	-65 ░C	105 ░C	Contacts Not Included
TE Connectivity Raychem Cable Protection 87270-2	2	Thermoplastic	Female Socket	Free Hanging (In-Line)	Black	1	Crimp	Receptacle	-65 ░C	105 ░C	Contacts Not Included
TE Connectivity Raychem Cable Protection 87270-8	12	Thermoplastic	Female Socket	Free Hanging (In-Line)	Black	1	Crimp	Receptacle	-65 ░C	105 ░C	Contacts Not Included
TE Connectivity Raychem Cable Protection 1-87270-5	7	Thermoplastic	Female Socket	Free Hanging (In-Line)	Black	1	Crimp	Receptacle	-65 ░C	105 ░C	Contacts Not Included	0.156 in	3.96 mm
TE Connectivity Raychem Cable Protection 87270-1	1	Thermoplastic	Female Socket	Free Hanging (In-Line)	Black	1	Crimp	Receptacle	-65 ░C	105 ░C	Contacts Not Included
TE Connectivity Raychem Cable Protection 1-87270-6	9	Thermoplastic	Female Socket	Free Hanging (In-Line)	Black	1	Crimp	Receptacle	-65 ░C	105 ░C	Contacts Not Included	0.156 in	3.96 mm
TE Connectivity Raychem Cable Protection 1-87270-4		Thermoplastic	Female Socket	Free Hanging (In-Line)	Black	1	Crimp	Receptacle	-65 ░C	105 ░C	Contacts Not Included	0.156 in	3.96 mm
TE Connectivity Raychem Cable Protection 87270-3	4	Polyester Glass Filled	Female Socket	Free Hanging (In-Line)	Black	1	Crimp	Receptacle	-65 ░C	105 ░C	Contacts Not Included			Positions Molded Closed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.73
		10	$ 2.43
		25	$ 2.42
		50	$ 2.39
		100	$ 2.19
		250	$ 2.18
		500	$ 1.99
		1000	$ 1.78
		2500	$ 1.64

Description

General part information

87270 Series

2 Rectangular Connectors - Housings Receptacle Black
