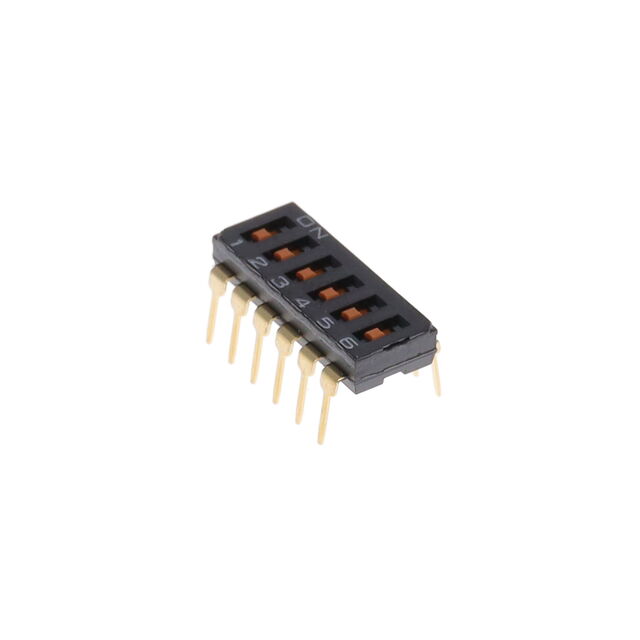

A6T-6101(VNM)
ActiveOmron Electronics Inc-EMC Div
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
A6T-6101(VNM)
ActiveOmron Electronics Inc-EMC Div
SWITCH SLIDE DIP SPST 0.025A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A6T-6101(VNM) |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Slide (Standard) |
| Circuit | SPST |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 1000 Cycles |
| Height Above Board | 3.6 mm |
| Height Above Board | 0.142 in |
| Length [x] | 0.637 in |
| Length [x] | 16.18 mm |
| Mechanical Life | 1000 Cycles |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | PC Pin |
| Voltage Rating | 24 VDC |
| Washable | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.44 | |
| 10 | $ 1.40 | |||
| 28 | $ 1.27 | |||
| 112 | $ 1.10 | |||
| 252 | $ 1.01 | |||
Description
General part information
A6T-6101(VNM)
Dip Switch SPST 6 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
