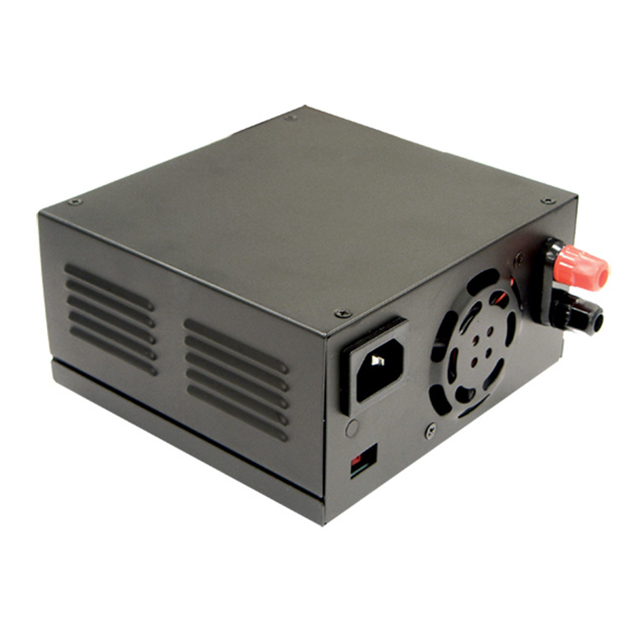

ESC-240-13.5
ObsoleteMEAN WELL USA Inc.
AC/DC CONVERTER 13.5V 216W
ESC-240-13.5
ObsoleteMEAN WELL USA Inc.
AC/DC CONVERTER 13.5V 216W
Description
General part information
ESC-240-13.5
Enclosed AC DC Converters 1 Output 13.5V 85 ~ 132 VAC, 176 ~ 264 VAC, 249 ~ 370 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | ESC-240-13.5 |
|---|---|
| Applications | Laboratory, ITE (Commercial) |
| Approval Agency | cCSAus, CE |
| Current - Output 1 | 16 A |
| Efficiency | 81 % |
| Features | Universal Input, Adjustable Output |
| Minimum Load Required | No |
| Mounting Type | Benchtop |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Power (Watts) | 216 W |
| Size / Dimension Height | 2.95 in |
| Size / Dimension Length | 5.91 in |
| Size / Dimension Width | 5.51 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 132 V, 264 V |
| Voltage - Input (AC) Minimum | 176 VAC, 85 VAC |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 249 VDC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 13.5 V |
