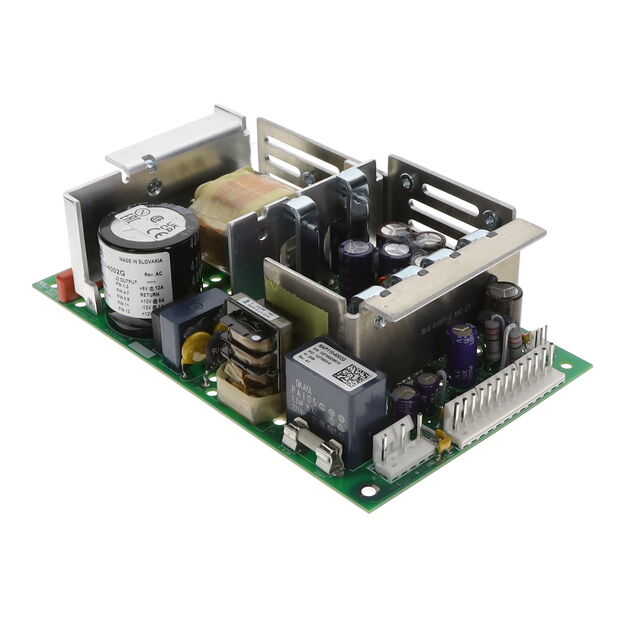

MAP110-4002G

Active

Bel Power Solutions

AC/DC CNVRTR 5V +/-12V 12V 60W

Deep-Dive with AI

Search across all available documentation for this part.

MAP110-4002G

Active

Bel Power Solutions

AC/DC CNVRTR 5V +/-12V 12V 60W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 286.19
		20	$ 268.31

Description

General part information

MAP110 Series

Open Frame AC DC Converters 4 Output 5V 12V -12V 12V 85 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MAP110-4002G	MAP110 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	cCSAus, CE, CB	cCSAus, CE, CB
Current - Output 1	12 A	3.8 - 12 A
Current - Output 2	5 A	3 - 5 A
Current - Output 4	1 A	1 - 2 A
Efficiency	80 %	80 %
Features	Remote Sense, Universal Input, Adjustable Output	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	True	True, False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	4	1 - 4
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	60 W, 110 W	60 - 120 W
Size / Dimension [x]	177.8 mm	177.8 - 183 mm
Size / Dimension [x]	7 "	7 - 7.2 in
Size / Dimension [y]	109.2 mm	109.2 - 115 mm
Size / Dimension [y]	4.3 in	4.3 - 4.5 in
Size / Dimension [z]	50 mm	50 - 61 mm
Size / Dimension [z]	1.97 "	1.97 - 2.4 in
Type	Open Frame	Enclosed, Open Frame
Voltage - Isolation	4.242 kV	4.242 kV
Voltage - Output 1	5 V	5 - 24 V
Voltage - Output 2	12 V	12 - 24 V
Voltage - Output 3	-12 V	-15 - -12 V
Voltage - Output 4	12 V	-5 - 24 V

MAP110 Series

AC/DC CNVRTR 5V 24V +/-15V 60W

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Isolation	Current - Output 1	Operating Temperature [Max]	Features	Mounting Type	Voltage - Output 2	Efficiency	Approval Agency	Power (Watts)	Type	Current - Output 4	Number of Outputs	Current - Output 2	Voltage - Output 1	Voltage - Output 4	Voltage - Output 3	Applications
Bel Power Solutions MAP110-4004C	183 mm	115 mm	7.2 in	61 mm	2.4 in	4.5 in	4.242 kV	12 A	70 °C	Adjustable Output, Remote Sense, Universal Input	Chassis Mount	24 V	80 %	CB, cCSAus, CE	60 W, 110 W	Enclosed	1 A	4	3 A	5 V	15 V	-15 V	ITE (Commercial)
Bel Power Solutions MAP110-4004	177.8 mm	109.2 mm	7 "	50 mm	1.97 "	4.3 in	4.242 kV	12 A	70 °C	Adjustable Output, Remote Sense, Universal Input	Chassis Mount	24 V	80 %	CB, cCSAus, CE	80 W, 110 W	Open Frame	1 A	4	3 A	5 V	15 V	-15 V	ITE (Commercial)
Bel Power Solutions MAP110-1024	177.8 mm	109.2 mm	7 "	50 mm	1.97 "	4.3 in	4.242 kV	3.8 A	70 °C	Adjustable Output, Remote Sense, Universal Input	Chassis Mount		80 %	CB, cCSAus, CE	90 W, 120 W	Open Frame		1		24 V			ITE (Commercial)
Bel Power Solutions MAP110-4000	177.8 mm	109.2 mm	7 "	50 mm	1.97 "	4.3 in	4.242 kV	12 A	70 °C	Adjustable Output, Remote Sense, Universal Input	Chassis Mount	12 V	80 %	CB, cCSAus, CE	80 W, 110 W	Open Frame	1 A	4	5 A	5 V	-5 V	-12 V	ITE (Commercial)
Bel Power Solutions MAP110-1024G	177.8 mm	109.2 mm	7 "	50 mm	1.97 "	4.3 in	4.242 kV	3.8 A	70 °C	Adjustable Output, Remote Sense, Universal Input	Chassis Mount		80 %	CB, cCSAus, CE	90 W, 120 W	Open Frame		1		24 V			ITE (Commercial)
Bel Power Solutions MAP110-1012	177.8 mm	109.2 mm	7 "	50 mm	1.97 "	4.3 in	4.242 kV		70 °C	Adjustable Output, Remote Sense, Universal Input	Chassis Mount		80 %	CB, cCSAus, CE	90 W, 120 W	Open Frame		1		12 V			ITE (Commercial)
Bel Power Solutions MAP110-4011	177.8 mm	109.2 mm	7 "	50 mm	1.97 "	4.3 in	4.242 kV	12 A	70 °C	Adjustable Output, Remote Sense, Universal Input	Chassis Mount	12 V	80 %	CB, cCSAus, CE	80 W, 110 W	Open Frame	1 A	4	5 A	5 V	24 V	-12 V	ITE (Commercial)
Bel Power Solutions MAP110-4002CT	183 mm	115 mm	7.2 in	61 mm	2.4 in	4.5 in	4.242 kV	12 A	70 °C	Adjustable Output, Remote Sense, Universal Input	Chassis Mount	12 V	80 %	CB, cCSAus, CE	60 W, 110 W	Enclosed	1 A	4	5 A	5 V	12 V	-12 V	ITE (Commercial)
Bel Power Solutions MAP110-4002G	177.8 mm	109.2 mm	7 "	50 mm	1.97 "	4.3 in	4.242 kV	12 A	70 °C	Adjustable Output, Remote Sense, Universal Input	Chassis Mount	12 V	80 %	CB, cCSAus, CE	60 W, 110 W	Open Frame	1 A	4	5 A	5 V	12 V	-12 V	ITE (Commercial)
Bel Power Solutions MAP110-4004G	177.8 mm	109.2 mm	7 "	50 mm	1.97 "	4.3 in	4.242 kV	12 A	70 °C	Adjustable Output, Remote Sense, Universal Input	Chassis Mount	24 V	80 %	CB, cCSAus, CE	80 W, 110 W	Open Frame	1 A	4	3 A	5 V	15 V	-15 V	ITE (Commercial)
