Description
General part information

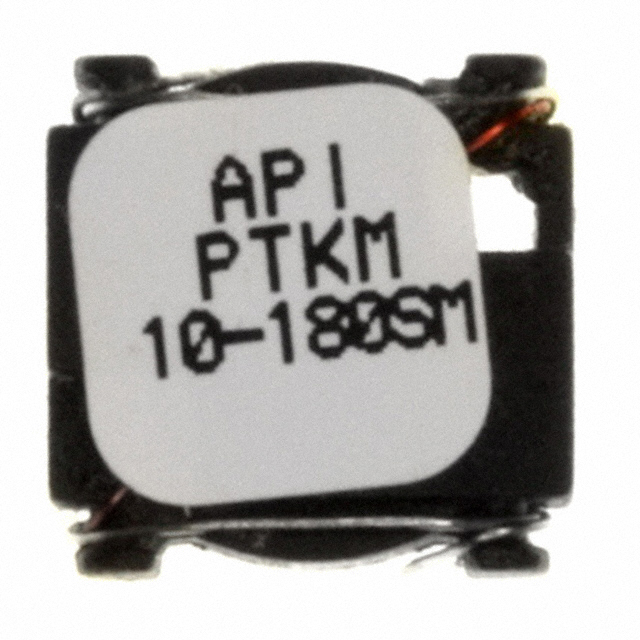

PTKM10-180SM
10 µH Shielded Toroidal Inductor 1.6 A 100mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PTKM10-180SM |
|---|---|
| Current - Saturation (Isat) | 0.43 mA |
| Current Rating | 1.6 A |
| DC Resistance (DCR) (Max) | 100 mOhm |
| Frequency - Self Resonant | 35 MHz |
| Height - Seated (Max) | 0.3 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.34 in |
| Size / Dimension Width | 0.34 in |
| Tolerance | 10 % |
| Type | Toroidal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
