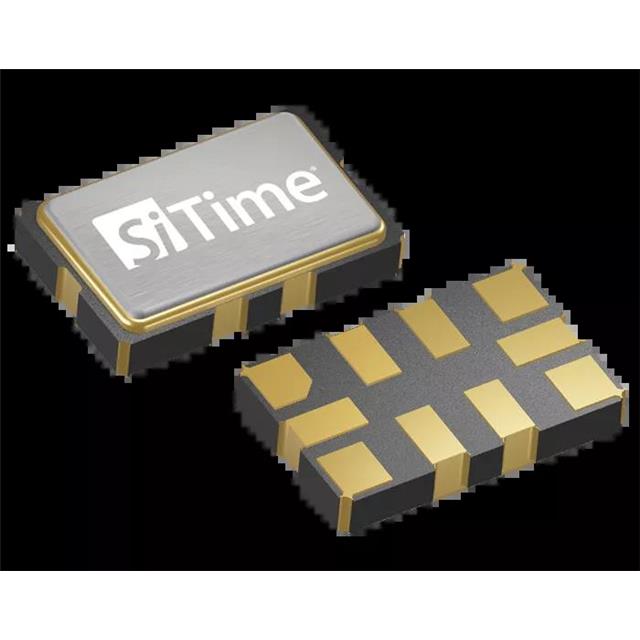

SIT5147AE-FK-33VTA160.000000

Active

SiTime

MEMS OSC TCXO 160.000000 MHZ LVC

Search across all available documentation for this part.

Active

SiTime

MEMS OSC TCXO 160.000000 MHZ LVC

Technical Specifications

Parameters and characteristics commom to parts in this series

MEMS OSC TCXO 102.400000 MHZ LVC

Part	Voltage - Supply	Output	Operating Temperature [Max]	Operating Temperature [Min]	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Supply (Max) [Max]	Mounting Type	Frequency	Frequency Stability	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Base Resonator	Package / Case	Absolute Pull Range (APR)	Function	Current - Supply (Disable) (Max) [Max]	Supplier Device Package
SiTime SIT5147AI-FK-33N0A102.400000	3.3 V	LVCMOS	85 °C	-40 °C	DCTCXO	0.197 in	0.126 "	3.2 mm	5 mm	62 mA	Surface Mount	102.4 MHz	500 ppb	0.042 in	1.06 mm	MEMS	10-SMD, No Lead
SiTime SIT5147AE-FK-33VTA160.000000	3.3 V	LVCMOS	105 ░C	-40 °C	VCTCXO	0.197 in	0.126 "	3.2 mm	5 mm	66 mA	Surface Mount	160 MHz	500 ppb	0.042 in	1.06 mm	MEMS	10-SMD, No Lead	2.75 ppm
SiTime SIT5147AE-FKG33IEB160.000000	3.3 V	LVCMOS	105 ░C	-40 °C	DCTCXO	0.197 in	0.126 "	3.2 mm	5 mm	62 mA	Surface Mount	160 MHz	500 ppb	0.042 in	1.06 mm	MEMS	10-SMD, No Lead	96.5 ppm	Enable/Disable	52 mA	10-CQFN (5x3.2)
SiTime SIT5147AE-FK-33E0B160.000000	3.3 V	LVCMOS	105 ░C	-40 °C	TCXO	0.197 in	0.126 "	3.2 mm	5 mm	62 mA	Surface Mount	160 MHz	500 ppb	0.042 in	1.06 mm	MEMS	10-SMD, No Lead		Enable/Disable	52 mA
SiTime SIT5147AE-FK-30E0B65.000000	3 V	LVCMOS	105 ░C	-40 °C	TCXO	0.197 in	0.126 "	3.2 mm	5 mm	62 mA	Surface Mount	65 MHz	500 ppb	0.042 in	1.06 mm	MEMS	10-SMD, No Lead		Enable/Disable	52 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10	$ 256.52

General part information

160 MHz VCTCXO LVCMOS Oscillator 3.3V 10-SMD, No Lead
