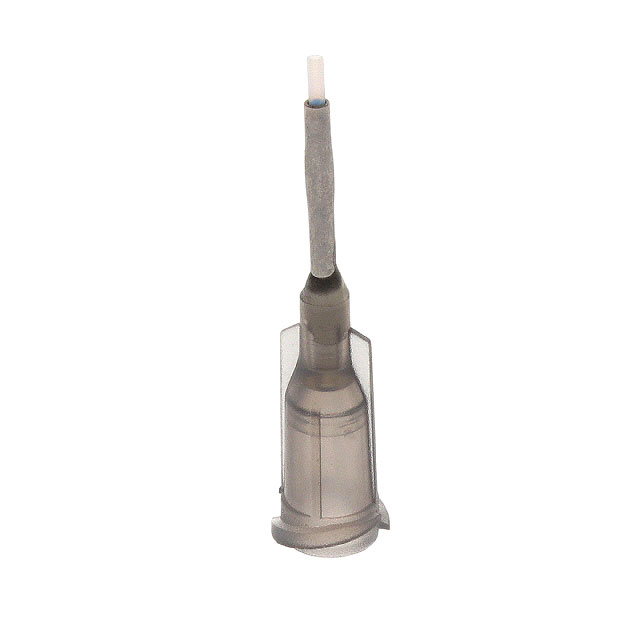

JG21-0.5HPTLX

Active

Jensen Global Inc.

21G 0.5" HP SERIES PTFE LINED TI

Search across all available documentation for this part.

Active

Jensen Global Inc.

21G 0.5" HP SERIES PTFE LINED TI

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 47.12

General part information

Gray

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	JG21-0.5HPTLX	JG21 Series

Color	Gray	Blue, Green, Purple, Gray
Gauge	21	21
Inner Diameter	-	0.51 mm
Inner Diameter [diameter]	0.66 mm	0.46 - 4.83 mm
Inner Diameter [diameter]	0.026 in	0.018 - 0.19 in
Number of Pieces	50 pieces	1 - 1000
Outer Diameter	-	0.81 - 0.97 mm
Outer Diameter	-	0.032 - 0.038 in
Tip Type	Straight	Angled 45°, Angled 90°, Straight, Conical
Type	Dispenser Needle, Tip	Dispenser Needle, Tip

21G 1.5" HP SERIES TIP ID .020"

Part	Number of Pieces	Tip Type	Type	Inner Diameter [diameter]	Inner Diameter	Gauge	Color	Outer Diameter [diameter]	Outer Diameter [diameter]	Inner Diameter [diameter]
Jensen Global Inc. JG21-1.5HP-45-ESD	500	Angled 45°	Dispenser Needle, Tip	0.02 in	0.51 mm	21
Jensen Global Inc. JG21-0.5X	50 pieces		Dispenser Needle, Tip			21	Blue
Jensen Global Inc. JG21-1.0HP-90-ESD	1000 pieces	Angled 90°	Dispenser Needle, Tip	0.02 in	0.51 mm	21
Jensen Global Inc. JG21-1.0X-90	50 pieces	Angled 90°	Dispenser Needle, Tip	0.022 in		21	Green	0.84 mm	0.033 in	0.56 mm
Jensen Global Inc. JG21-1.0HPX-90-ESD	50 pieces	Angled 90°	Dispenser Needle, Tip	0.02 in	0.51 mm	21		0.81 mm	0.032 in
Jensen Global Inc. JG21-1.0HP-45-ESD	1000 pieces	Angled 45°	Dispenser Needle, Tip	0.02 in	0.51 mm	21
Jensen Global Inc. JG21-0.25HPX	50 pieces	Straight	Dispenser Needle, Tip	0.02 in	0.51 mm	21	Purple	0.81 mm	0.032 in
Jensen Global Inc. JG21-1.5-90	500	Angled 90°	Dispenser Needle, Tip	0.022 in		21	Green	0.84 mm	0.033 in	0.56 mm
Jensen Global Inc. JG21-1.5HPX-ESD		Straight	Dispenser Needle, Tip	0.02 in	0.51 mm	21
Jensen Global Inc. JG21-0.5HPX-90-ESD	50 pieces	Angled 90°	Dispenser Needle, Tip	0.02 in	0.51 mm	21	Purple	0.81 mm	0.032 in
