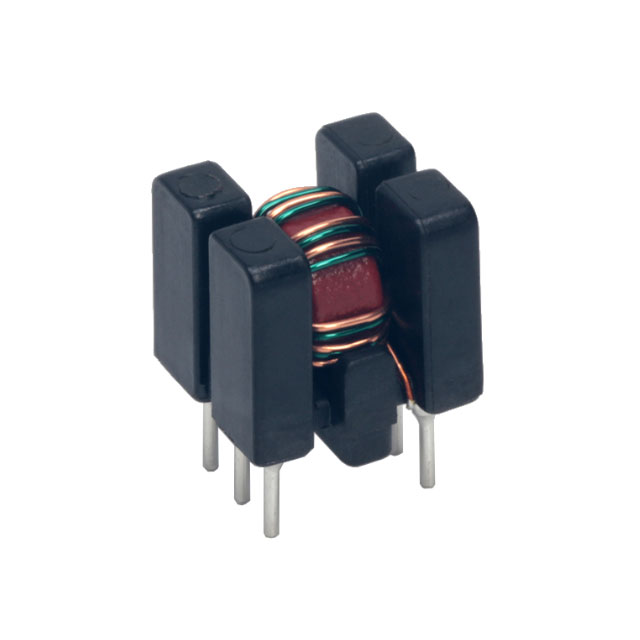

SH-102
1.5 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 3A DCR 26mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | SH-102 |
|---|---|
| Current Rating (Max) | 3 A |
| DC Resistance (DCR) (Max) | 26 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.472 in |
| Inductance | 1.5 µH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 0.492 in |
| Size / Dimension Width | 0.394 in |
| Voltage Rating - DC | 150 VDC |
