NFR2500003300JR500
ActiveVishay Dale
NFR25 5% R5 330R ROHS COMPLIANT: YES
NFR2500003300JR500
ActiveVishay Dale
NFR25 5% R5 330R ROHS COMPLIANT: YES
Description
General part information
NFR2500003300JR500

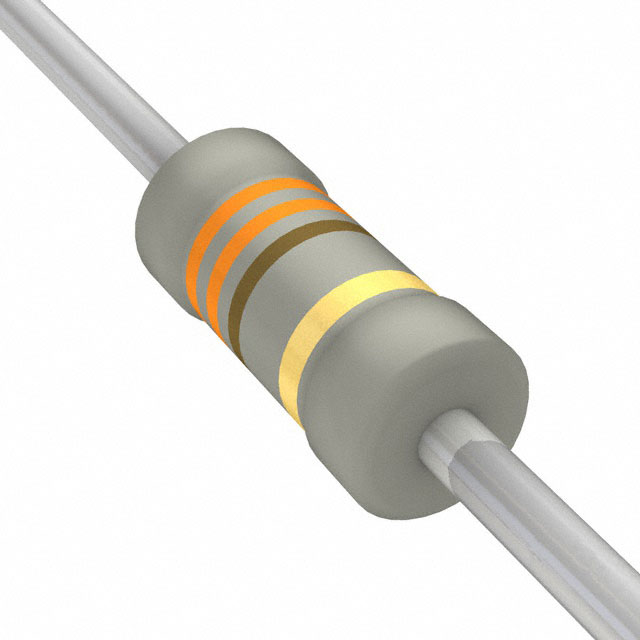

330 Ohms ±5% 0.333W, 1/3W Through Hole Resistor Axial Flame Proof, Fusible, Safety Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | NFR2500003300JR500 |
|---|---|
| Composition | Metal Film |
| Features | Flame Proof, Safety, Fusible |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 0.333 W |
| Power (Watts) Options | 1/3W |
| Resistance | 330 Ohm |
| Size / Dimension Diameter | 0.098 in |
| Size / Dimension Length | 0.256 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 5 % |
