1217095-2
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 12-16AWG 0.250
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217095-2
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 12-16AWG 0.250
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217095-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] | 0.17 in |
| Insulation Diameter [Max] | 4.32 mm |
| Insulation Diameter [Min] | 0.12 in |
| Insulation Diameter [Min] | 3.05 mm |
| Length - Overall [x] | 0.771 in |
| Length - Overall [x] | 19.58 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length [x] | 7.44 mm |
| Tab Length [x] | 0.293 in |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 16 AWG |
| Wire Gauge [Min] | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.25 | |
| 10 | $ 0.21 | |||
| 25 | $ 0.21 | |||
| 50 | $ 0.21 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.14 | |||
| 2500 | $ 0.13 | |||
| Tape & Reel (TR) | 10000 | $ 0.11 | ||
| 30000 | $ 0.11 | |||
1217095 Series
CONN QC RCPT 12-16AWG 0.250
| Part | Tab Length [x] | Tab Length [x] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Wire Gauge [Min] | Wire Gauge [Max] | Termination | Contact Material | Tab Thickness | Tab Thickness | Insulation | Mounting Type | Terminal Type | Gender | Contact Finish | Length - Overall [x] | Length - Overall [x] | Tab Width | Tab Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217095-2 | 7.44 mm | 0.293 in | 0.12 in | 0.17 in | 4.32 mm | 3.05 mm | 12 AWG | 16 AWG | Crimp | Brass | 0.032 in | 0.81 mm | Non-Insulated | Free Hanging (In-Line) | Standard | Female | Tin | 0.771 in | 19.58 mm | 6.35 mm | 0.25 in |
Description
General part information
1217095 Series

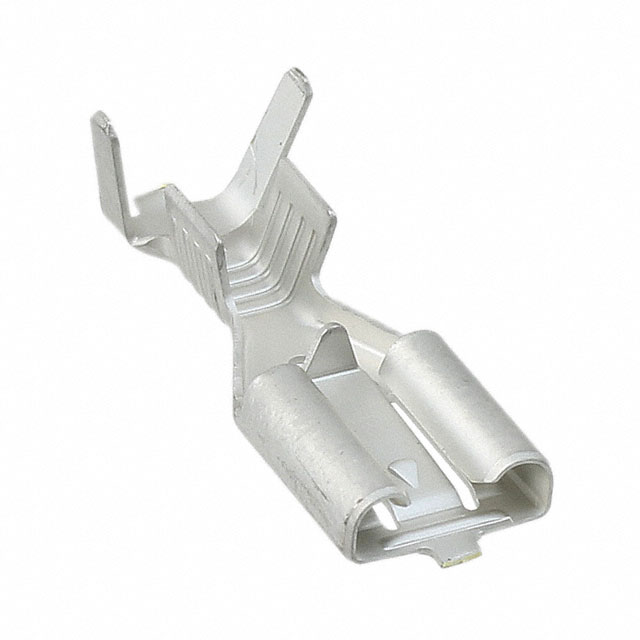

0.250" (6.35mm) Quick Connect Female 12-16 AWG Crimp Connector Non-Insulated
