1416KPO
ActiveKanebridge
SELF-DRILLING SCREW - TYPE BSD -
1416KPO
ActiveKanebridge
SELF-DRILLING SCREW - TYPE BSD -
Description
General part information
1416KPO

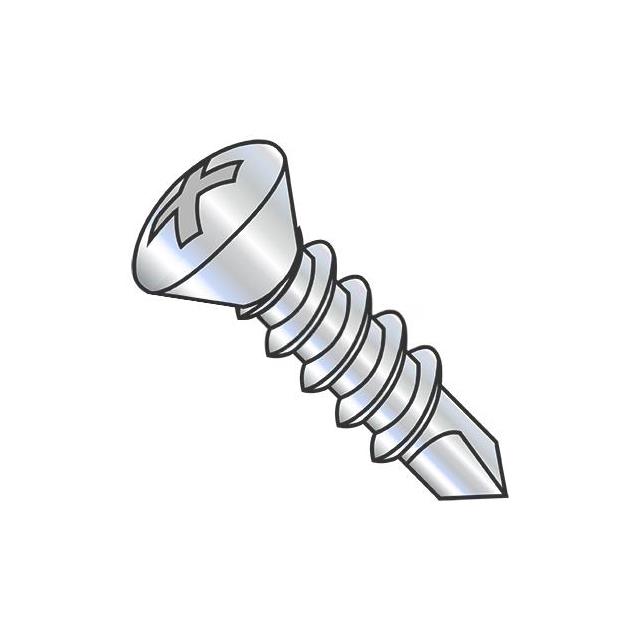

1/4"-14 Oval Head Self-Drilling Screw Phillips Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1416KPO |
|---|---|
| Drive Type | Phillips |
| Features | Standard |
| Head Diameter | 0.46 in |
| Head Height | 0.232 in |
| Length - Below Head | 1 in |
| Length - Overall | 1.232 in |
| Material | Steel |
| Plating | Zinc |
| Screw Head Type | Oval Head |
| Thread Pitch (TPI) | 14 TPI |
| Thread Size (Nominal) | 0.25 in |
| Type | Self-Drilling Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
