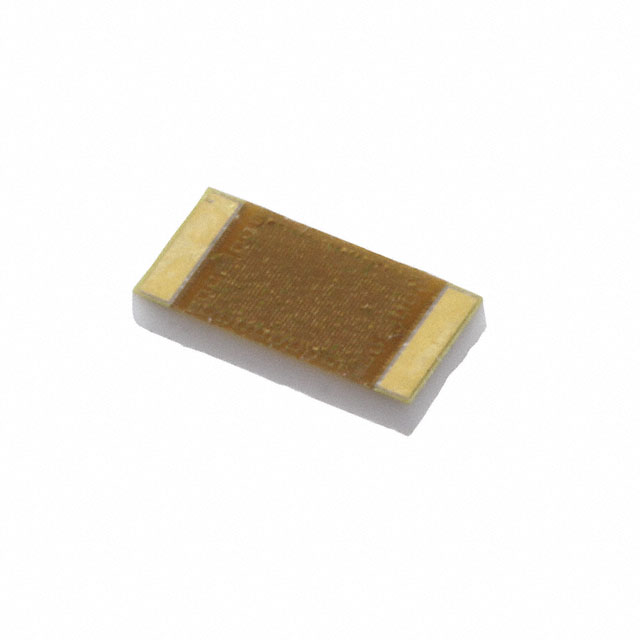

Y07771K00000Q0W
ActiveVPG Foil Resistors
RES SMD 1K OHM 0.02% 0.04W 1506
Y07771K00000Q0W
ActiveVPG Foil Resistors
RES SMD 1K OHM 0.02% 0.04W 1506
Description
General part information
Y07771K00000Q0W
1 kOhms ±0.02% 0.04W Chip Resistor Nonstandard Moisture Resistant, Non-Inductive Metal Foil
Technical Specifications
Parameters and characteristics for this part
| Specification | Y07771K00000Q0W |
|---|---|
| Composition | Metal Foil |
| Features | Moisture Resistant, Non-Inductive |
| Height - Seated (Max) | 0.023 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 220 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Package Name | 1506 |
| Power (Watts) | 40 mW |
| Resistance | 1 kOhm |
| Size / Dimension Length | 0.15 in |
| Size / Dimension Width | 0.062 in |
| Temperature Coefficient | 2.5 ppm/°C |
| Tolerance | 0.02 % |
