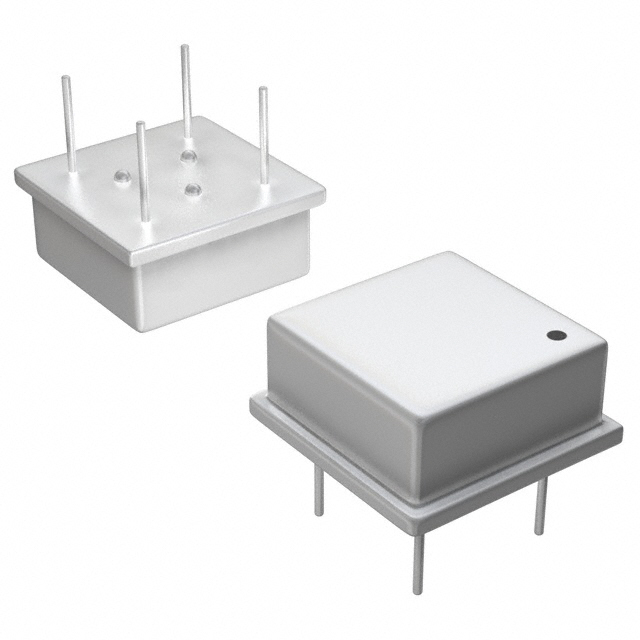

ACHL-14.31818MHZ-EK
ActiveAbracon LLC
XTAL OSC XO 14.31818MHZ HCMOS
ACHL-14.31818MHZ-EK
ActiveAbracon LLC
XTAL OSC XO 14.31818MHZ HCMOS
Description
General part information
ACHL-14.31818MHZ-EK
14.31818 MHz XO (Standard) HCMOS, TTL Oscillator 3.3V 8-DIP, 4 Leads (Half Size, Metal Can)
Technical Specifications
Parameters and characteristics for this part
| Specification | ACHL-14.31818MHZ-EK |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 20 mA |
| Frequency | 14.31818 MHz |
| Frequency Stability | 30 ppm |
| Height - Seated (Max) | 0.217 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output | TTL, HCMOS |
| Package Leads | 4 Leads |
| Package Name | 8-DIP |
| Size / Dimension Length | 0.52 in |
| Size / Dimension Width | 0.52 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
