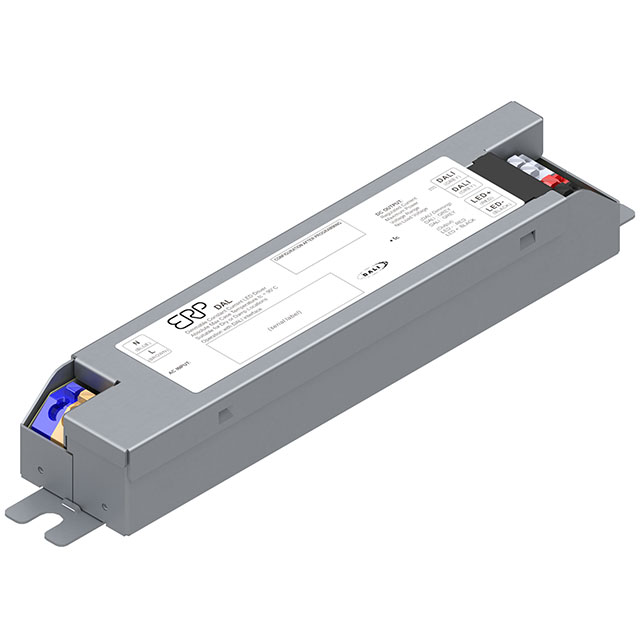

DAL50W-0850-56-T

Active

ERP Power, LLC

PROGRAMMABLE CC LED DRIVER

Search across all available documentation for this part.

Active

ERP Power, LLC

PROGRAMMABLE CC LED DRIVER

Technical Specifications

Parameters and characteristics commom to parts in this series

PROGRAMMABLE CC LED DRIVER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Topology	Approval Agency	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Power (Watts)	Termination Style	Efficiency	Number of Outputs	Voltage - Output [Min]	Voltage - Output [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Ratings	Type	Mounting Type	Dimming
ERP Power, LLC DAL50W-0850-56-T	-10 °C	40 °C	277 VAC	AC DC Converter	CB, CE, cULus, ENEC, FCC	120 VAC	850 mA	50 W	Terminal Block	90 %	1	38 V	56 V	132.2 mm	0.81 in	1.2 "	5.21 in	20.7 mm	30.6 mm	IP20	Constant Current	Chassis Mount	DALI
ERP Power, LLC DAL50W-1200-42-T	-10 °C	40 °C	277 VAC	AC DC Converter	CB, CE, cULus, ENEC, FCC	120 VAC	1.2 A	50 W	Terminal Block	90 %	1	28 V	42 V	132.2 mm	0.81 in	1.2 "	5.21 in	20.7 mm	30.6 mm	IP20	Constant Current	Chassis Mount	DALI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

850mA 38 ~ 56V Constant Current LED Driver AC DC Converter Topology 1 Output
