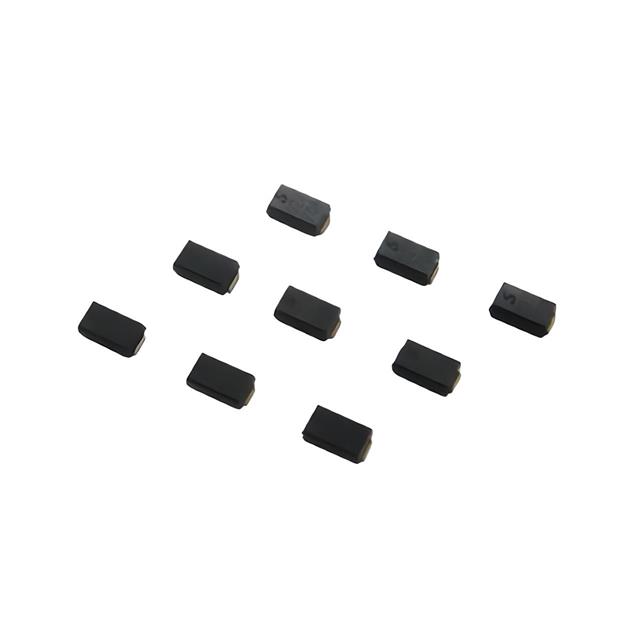

ZS1027-T

Active

Semitec USA Corp

TVS DIODE 27VWM 39.1VC SMA

Search across all available documentation for this part.

Active

Semitec USA Corp

TVS DIODE 27VWM 39.1VC SMA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZS1027-T	ZS10 Series

Applications	Telecom	Telecom
Bidirectional Channels [custom]	1	1
Current - Peak Pulse (10/1000µs)	7.67 A	4.42 - 17.3 A
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	DO-214AC, SMA	DO-214AC, SMA
Power - Peak Pulse	300 W	300 W
Power Line Protection	False	False
Supplier Device Package	SMA	SMA
Type	Zener	Zener
Voltage - Breakdown (Min) [Min]	5 V	5 - 10 V
Voltage - Clamping (Max) @ Ipp [Max]	39.1 V	17.3 - 67.8 V
Voltage - Reverse Standoff (Typ)	27 V	12 - 47 V

TVS DIODE 47VWM 67.8VC SMA

Part	Power - Peak Pulse	Operating Temperature [Min]	Operating Temperature [Max]	Type	Package / Case	Supplier Device Package	Voltage - Clamping (Max) @ Ipp [Max]	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ)	Mounting Type	Bidirectional Channels [custom]	Voltage - Breakdown (Min) [Min]	Applications
Semitec USA Corp ZS1047-T	300 W	-40 °C	125 °C	Zener	DO-214AC, SMA	SMA	67.8 V	4.42 A	47 V	Surface Mount	1	5 V	Telecom
Semitec USA Corp ZS1027-T	300 W	-40 °C	125 °C	Zener	DO-214AC, SMA	SMA	39.1 V	7.67 A	27 V	Surface Mount	1	5 V	Telecom
Semitec USA Corp ZS1012-T	300 W	-40 °C	125 °C	Zener	DO-214AC, SMA	SMA	17.3 V	17.3 A	12 V	Surface Mount	1	10 V	Telecom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

39.1V Clamp 7.67A Ipp Tvs Diode Surface Mount SMA
