Description
General part information

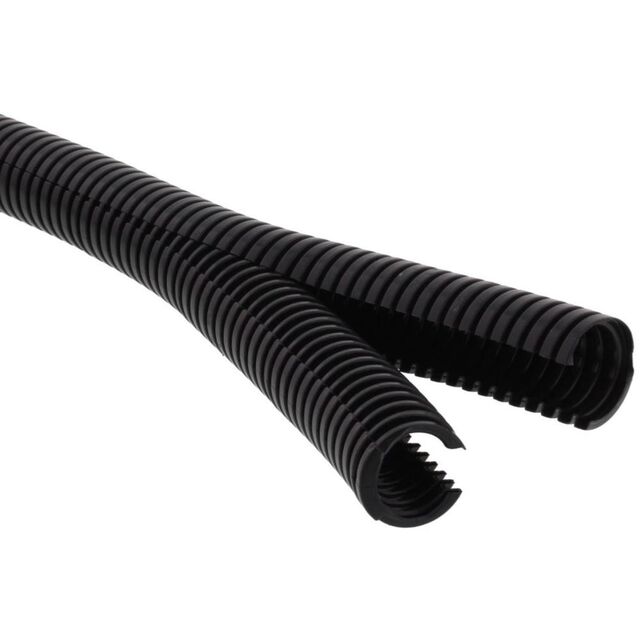

BCAV-23-D-BK
Black Polyamide (PA6), Nylon 6 Convoluted, Corrugated Wire Loom, Protective Hose 0.807" (20.50mm) 164' (50.00m)
Technical Specifications
Parameters and characteristics for this part
| Specification | BCAV-23-D-BK |
|---|---|
| Color | Black |
| Diameter - Inside | 0.807 in |
| Diameter - Outside | 1.114 in |
| Length | 164 ft |
| Material | Polyamide (PA6), Nylon 6 |
| Material Flammability Rating | UL94 V-2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Type | Protective Hose, Wire Loom |
| Type Attributes | Convoluted, Corrugated |
| Wall Thickness | 0.031 in |
