Description
General part information

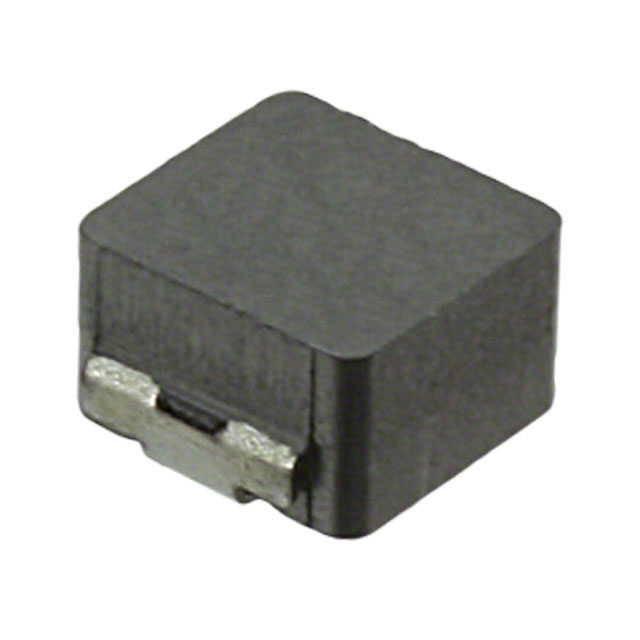

PCMB053T-1R5MS
1.5 µH Unshielded Inductor 6 A 20mOhm Max 1919 (4848 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | PCMB053T-1R5MS |
|---|---|
| Current - Saturation (Isat) | 10 A |
| Current Rating | 6 A |
| DC Resistance (DCR) (Max) | 20 mOhm |
| Height - Seated (Max) | 0.11 in |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | 1919 (4848 Metric) |
| Shielding | Unshielded |
| Size / Dimension Length | 0.191 in |
| Size / Dimension Width | 0.185 in |
| Tolerance | 20 % |
