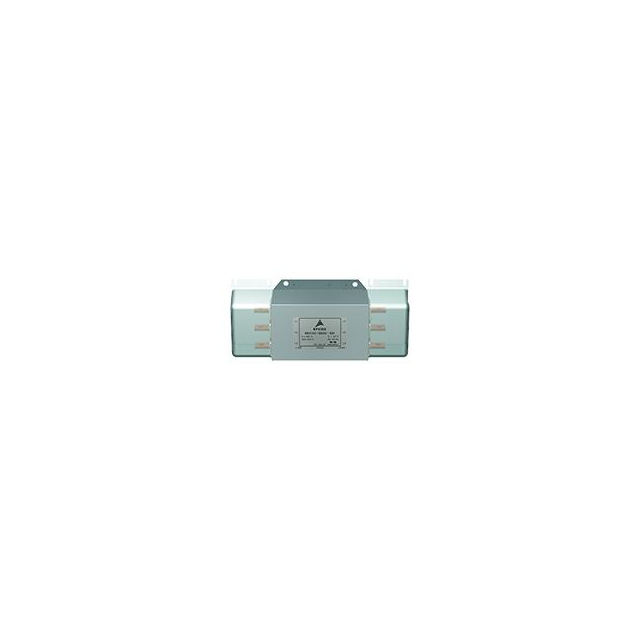

B84143B1000S081
ActiveEPCOS - TDK Electronics
LINE FILTER 760V/440VAC 1KA CHAS
B84143B1000S081
ActiveEPCOS - TDK Electronics
LINE FILTER 760V/440VAC 1KA CHAS
Description
General part information
B84143B1000S081
Three Phase (Delta) EMC/EMI Line Filter 1 kA 760V, 440V 50 ~ 60Hz Two Stage Terminal Post
Technical Specifications
Parameters and characteristics for this part
| Specification | B84143B1000S081 |
|---|---|
| Applications | General Purpose |
| Configuration | Two Stage |
| Current | 1000 A |
| Filter Subtype | Delta |
| Filter Type | Three Phase |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Inductance | 130 µH |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Terminal Post |
| Voltage - Rated AC | 760V, 440V |
| Voltage - Rated AC (Phase to Ground/Neutral) | 760 V |
| Voltage - Rated AC (Phase to Phase) | 440 V |
