BXL4001

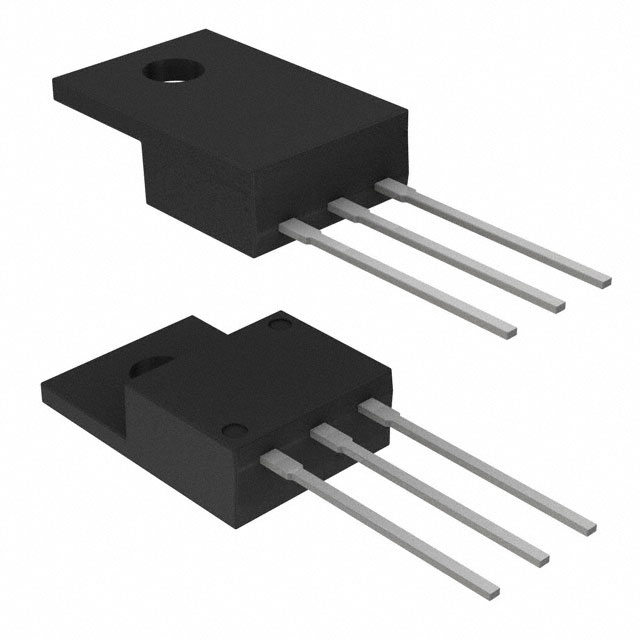

N-Channel 75 V 85A (Ta) 1.75W (Ta), 75W (Tc) Through Hole TO-220(LS)
Technical Specifications
Parameters and characteristics for this part
| Specification | BXL4001 |
|---|---|
| Current - Continuous Drain (Id) (Ta) | 85 A |
| Drain to Source Voltage (Vdss) | 75 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Max) | 115 nC, 115 nC |
| Input Capacitance (Ciss) (Max) | 6700 pF |
| Mounting Type | Through Hole |
| Operating Temperature | 150 °C |
| Package / Case | TO-220-3 |
| Package Name | TO-220(LS) |
| Power Dissipation (Max) | 1.75 W, 75 W |
| Rds On (Max) | 12.4 mOhm |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) | 4 V |
