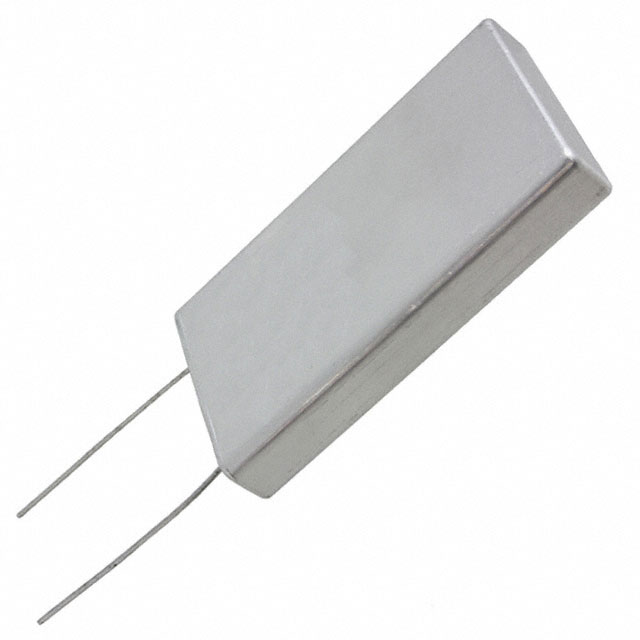

Specification	MLP332M080EB1C

Applications	General Purpose
Capacitance	3300 µF
ESR (Equivalent Series Resistance)	44 mOhm
Height - Seated (Max)	12.7 mm
Lead Spacing	1 in
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Package / Case	FlatPack
Polarization	Polar
Ripple Current	7.5 A, 9 A
Size / Dimension Length	3 in
Size / Dimension Width	1.75 in
Tolerance	20 %
Voltage - Rated	80 Vp-p
