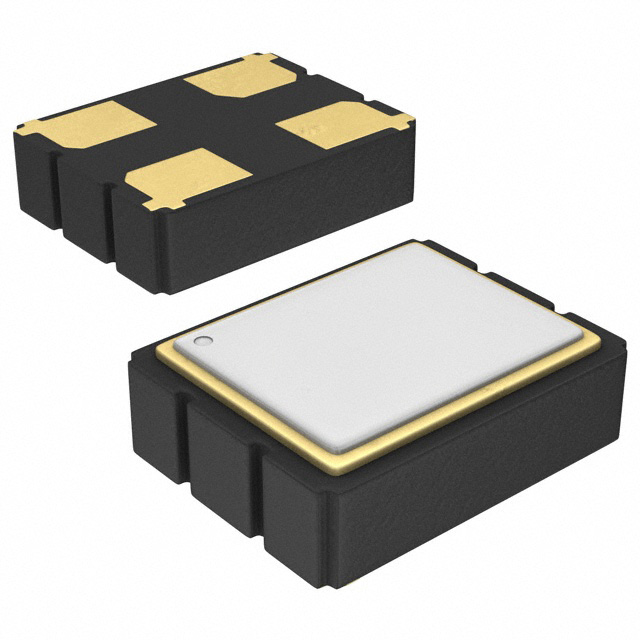

7XZ-32.768KCA-T
ActiveTXC CORPORATION
OSCILLATOR, 32.768 KHZ, 25 PPM, SMD, 3.2MM X 2.5MM, CMOS, 2.5 V, 7XZ SERIES
7XZ-32.768KCA-T
ActiveTXC CORPORATION
OSCILLATOR, 32.768 KHZ, 25 PPM, SMD, 3.2MM X 2.5MM, CMOS, 2.5 V, 7XZ SERIES
Description
General part information
7XZ-32.768KCA-T
32.768 kHz XO (Standard) CMOS Oscillator 2.5V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | 7XZ-32.768KCA-T |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 3 mA |
| Frequency | 0.032768 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.043 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | XO (Standard) |
| Voltage - Supply | 2.5 V |
