PE39423-9
ActivePasternack

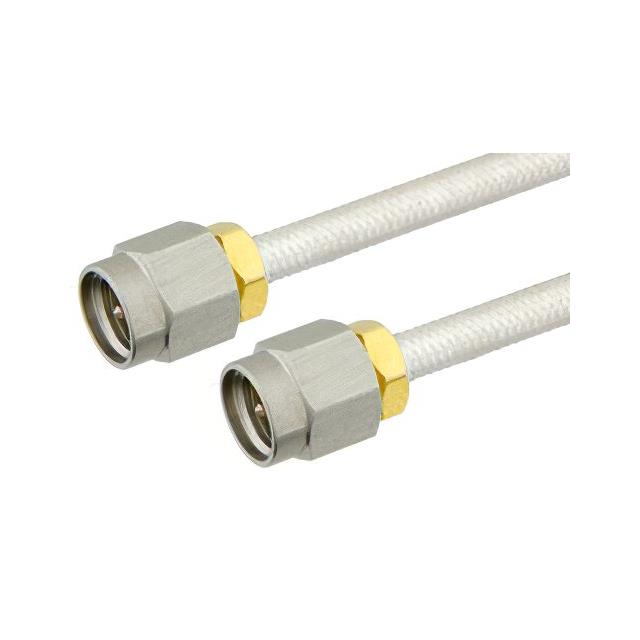

SMA MALE TO SMA MALE SEMI-FLEXIB
PE39423-9
ActivePasternack
SMA MALE TO SMA MALE SEMI-FLEXIB
Description
General part information
PE39423-9
Cable Assembly Coaxial SMA to SMA 9.000" (228.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE39423-9 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Color | Silver |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 228.6 mm |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA |
