1418344
ActivePhoenix Contact

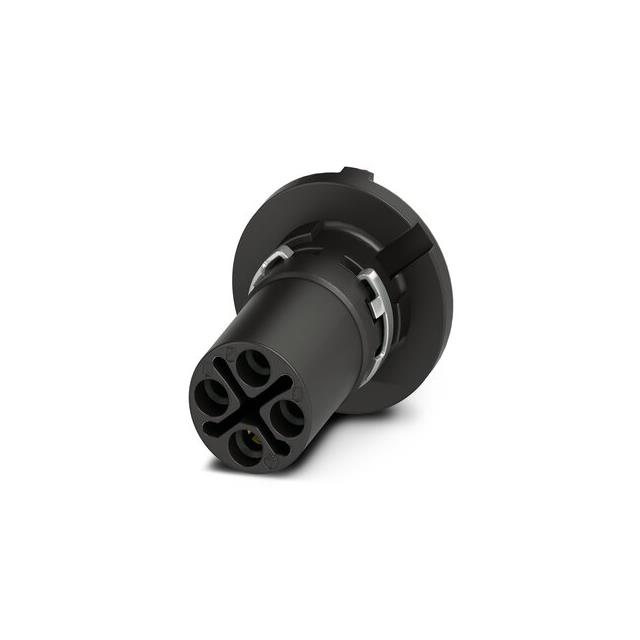

FLUSH-TYPE CONNECTOR, UNIVERSAL, 4-POSITION, SOCKET, LINK:0STRAIGHT, S POWER, PCB MOUNTING, THR SOLDER CONNECTION
1418344
ActivePhoenix Contact
FLUSH-TYPE CONNECTOR, UNIVERSAL, 4-POSITION, SOCKET, LINK:0STRAIGHT, S POWER, PCB MOUNTING, THR SOLDER CONNECTION
Description
General part information
1418344
4 Position Circular Connector Insert, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 1418344 |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Insert |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 12 A |
| Features | Requires Shell, Board Guide, Insert Only |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | Nylon 4/T, Polyamide, PA4T |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Orientation | S |
| Primary Material | Plastic |
| Shell Material | Nylon 4T, Polyamide (PA4T) |
| Shell Size - Insert | M12-4 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 630 V |
