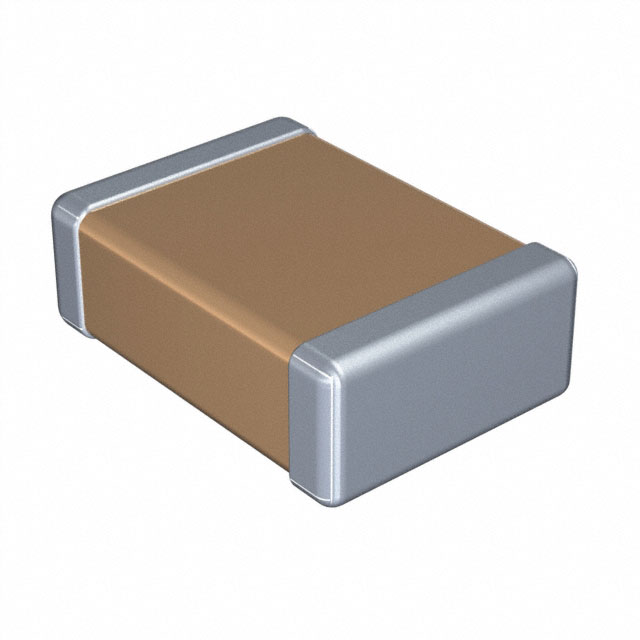

C4532C0G1H154J250KA
ActiveTDK Corporation
CAP CERAMIC 0.15UF 50V C0G 5% PAD SMD 1812 125°C T/R
C4532C0G1H154J250KA
ActiveTDK Corporation
CAP CERAMIC 0.15UF 50V C0G 5% PAD SMD 1812 125°C T/R
Description
General part information
C4532C0G1H154J250KA
0.15 µF ±5% 50V Ceramic Capacitor C0G, NP0 1812 (4532 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | C4532C0G1H154J250KA |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.15 µF |
| Features | Low ESL |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension Length | 0.177 in |
| Size / Dimension Width | 0.126 in |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) | 0.11 in |
| Tolerance | 5 % |
| Voltage - Rated | 50 V |
