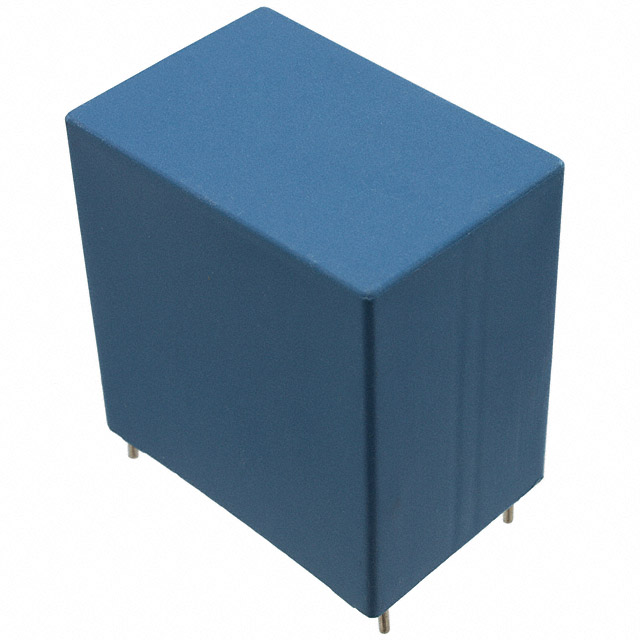

Specification	B32676G8755K000

Applications	DC Filtering, DC Link
Capacitance	7.5 µF
Dielectric Material	Metallized, Polypropylene (PP)
Features	Long Life
Height - Seated (Max)	1.772 in
Lead Spacing	1.476 in
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension Length	1.654 in
Size / Dimension Width	1.181 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - DC	875 V
