CSSH2728JT15L0
ActiveStackpole Electronics Inc
RES 0.015 OHM 5% 4W 2827 WIDE
CSSH2728JT15L0
ActiveStackpole Electronics Inc
RES 0.015 OHM 5% 4W 2827 WIDE
Description
General part information
CSSH2728JT15L0

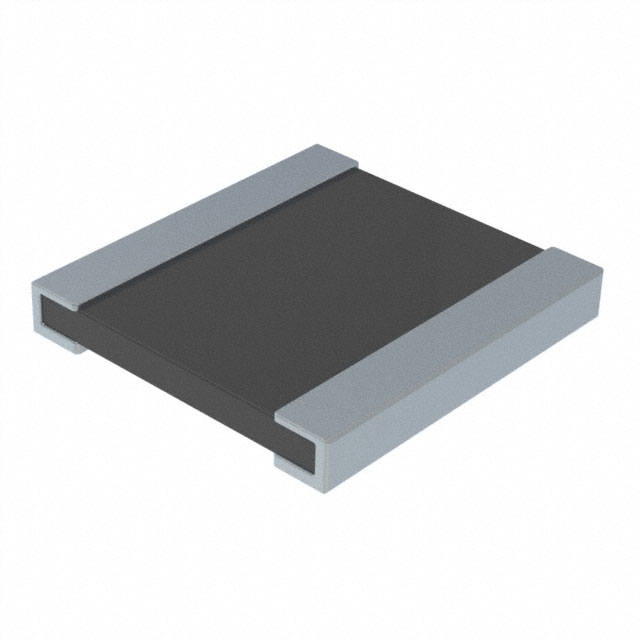

15 mOhms ±5% 4W Chip Resistor Wide 2827 (7067 Metric), 2728 Automotive AEC-Q200, Current Sense Metal Element
Technical Specifications
Parameters and characteristics for this part
| Specification | CSSH2728JT15L0 |
|---|---|
| Composition | Metal Element |
| Features | Current Sense, Automotive AEC-Q200 |
| Height - Seated (Max) | 0.049 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 225 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Wide 2827 (7067 Metric), 2728 |
| Package Name | 2728 |
| Power (Watts) | 4 W |
| Ratings | AEC-Q200 |
| Resistance | 15 mOhms |
| Size / Dimension Length | 0.264 in |
| Size / Dimension Width | 0.283 in |
| Temperature Coefficient | 15 ppm/°C |
| Tolerance | 5 % |
