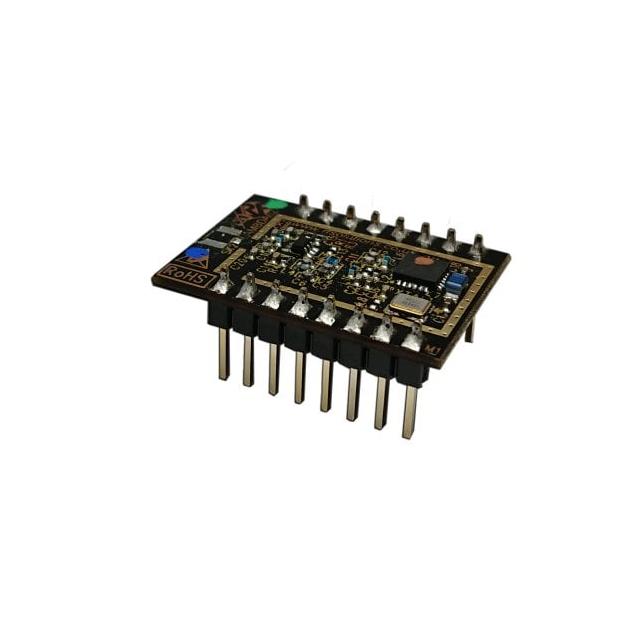

LAMBDA68-9D
ActiveRF SOLUTIONS
RF TXRX MOD ISM<1GHZTHROUGH HOLE
LAMBDA68-9D
ActiveRF SOLUTIONS
RF TXRX MOD ISM<1GHZTHROUGH HOLE
Description
General part information
LAMBDA68-9D
General ISM < 1GHz LoRa™ Transceiver Module 918MHz Antenna Not Included Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | LAMBDA68-9D |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Transmitting (Max) | 118 mA |
| Current - Transmitting (Min) | 45 mA |
| Data Rate | 300 kbps |
| Frequency | 918 MHz |
| Modulation | GFSK, MSK, FSK, GMSK |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 16-DIP Module |
| Power - Output | 22 dBm |
| Protocol | LoRa™ |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -148 dBm |
| Serial Interfaces | SPI |
| Utilized IC / Part | LLCC68 |
| Voltage - Supply (Maximum) | 3.7 V |
| Voltage - Supply (Minimum) | 1.8 V |
