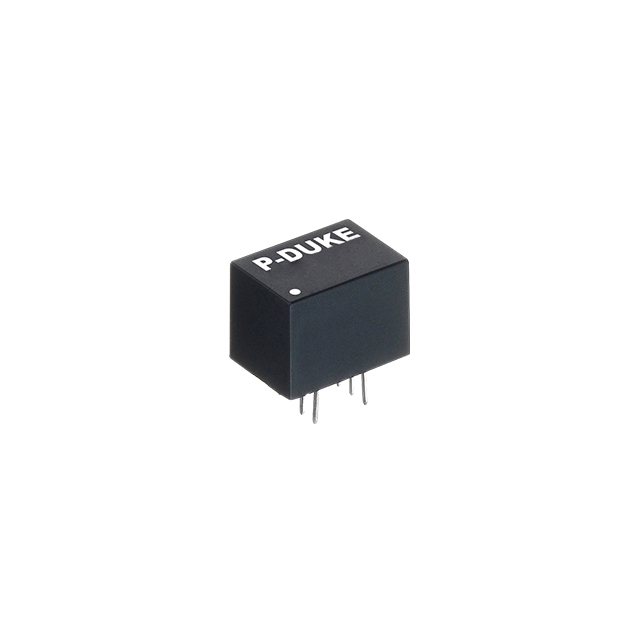

SDH05-05S12

Active

P-DUKE Technology

DC DC CONVERTER 12V 5W

Search across all available documentation for this part.

Active

P-DUKE Technology

DC DC CONVERTER 12V 5W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 15V 5W

Part	Package / Case	Power (Watts)	Voltage - Input (Min) [Min]	Features	Approval Agency	Efficiency	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Standard Number	Type	Mounting Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Voltage - Isolation	Current - Output (Max) [Max]	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2
P-DUKE Technology SDH05-48S15W	7-DIP Module, 6 Leads	5 W	18 V	Remote On/Off	CE	83 %	15 V	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	60950-1, 62368-1	Isolated Module	Through Hole	ITE (Commercial)	-40 °C	105 C	75 V	1.6 kV	333 mA	1
P-DUKE Technology SDH05-05S12	7-DIP Module, 6 Leads	5 W	4.5 V	Remote On/Off	CE	83 %	12 V	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	62368-1	Isolated Module	Through Hole	ITE (Commercial)	-40 °C	105 C	13.2 V	1.6 kV	420 mA	1
P-DUKE Technology SDH05-24D12W	7-DIP Module, 6 Leads	5 W	9 V	Remote On/Off	CE	83 %	12 V	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "		Isolated Module	Through Hole	ITE (Commercial)	-40 °C	105 C	36 V	1.6 kV		2	210 mA	210 mA	-12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 12V 420mA 4.5V - 13.2V Input
