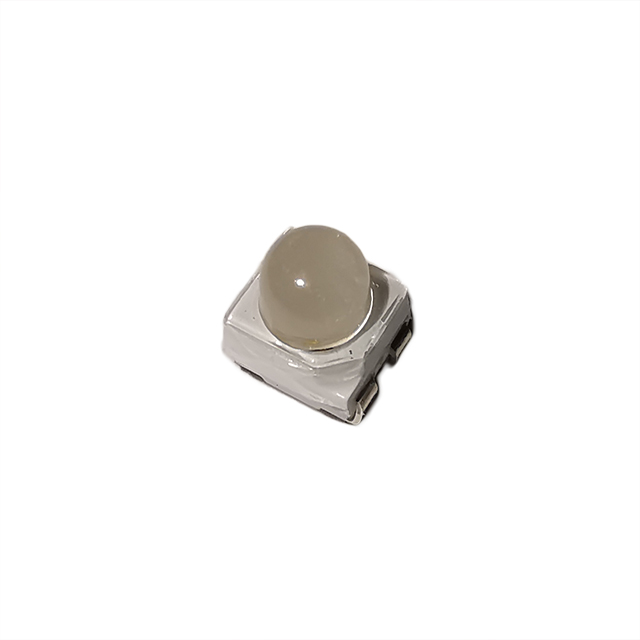

QBLP677AD-RGB5
ActiveQT Brightek (QTB)
LED RGB CLEAR 4PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBLP677AD-RGB5
ActiveQT Brightek (QTB)
LED RGB CLEAR 4PLCC SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBLP677AD-RGB5 |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] [z] | 3.6 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.4 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 500 mcd |
| Millicandela Rating [custom] | 550 mcd |
| Millicandela Rating [custom] | 4500 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, J-Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 4-PLCC |
| Viewing Angle | 30 ° |
| Voltage - Forward (Vf) (Typ) | 3.1 V, 2 V, 2.8 V |
| Wavelength - Dominant | 622 nm, 525 nm, 465 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.08 | |
| 10 | $ 0.68 | |||
| 100 | $ 0.50 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.38 | |||
| Digi-Reel® | 1 | $ 1.08 | ||
| 10 | $ 0.68 | |||
| 100 | $ 0.50 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.38 | |||
| Tape & Reel (TR) | 2000 | $ 0.36 | ||
| 6000 | $ 0.35 | |||
| 10000 | $ 0.35 | |||
Description
General part information
QBLP677AD-RGB5
Red, Green, Blue (RGB) 622nm Red, 525nm Green, 465nm Blue LED Indication - Discrete 2V Red, 2.8V Green, 3.1V Blue 4-SMD, J-Lead
