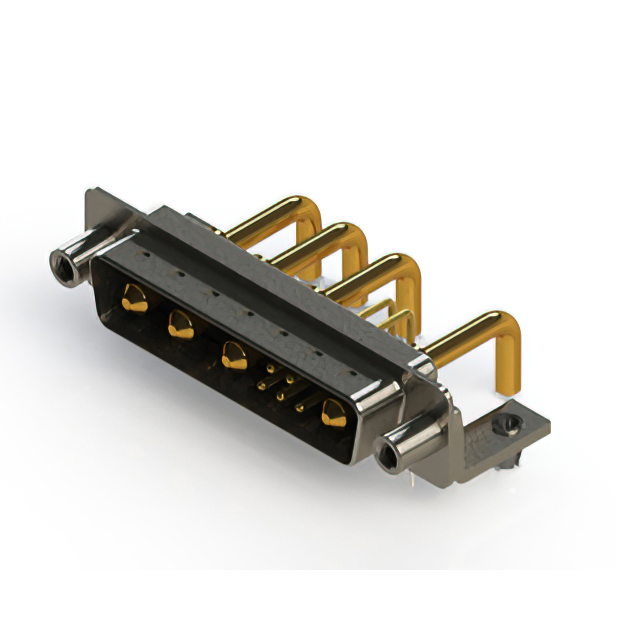

629-9W4-650-2T5

Active

EDAC Inc.

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-9W4-650-2T5

Active

EDAC Inc.

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-9W4-650-2T5

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A, 20 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets, Board Lock
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Positions [custom]	4
Number of Positions [custom]	5
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	3 (DB, B) - 9W4
Termination	Solder
Voltage Rating	125 VDC

629-9W4 Series

...

Part	Features	Material Flammability Rating	Voltage Rating	Contact Type	Color	Mounting Type	Connector Style	Number of Rows	Termination	Shell Size, Connector Layout	Contact Material	Contact Finish Thickness	Backset Spacing	Backset Spacing	Connector Type	Contact Finish	Number of Positions	Flange Feature	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Positions [custom]	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish
EDAC Inc. 629-9W4-240-5T5	Board Lock Grounding Indents Mounting Brackets	UL94 V-0	125 VDC	Coax Signal	Black	Through Hole Right Angle	Combo D-Sub	2	Solder	3 (DB B) - 9W4	Copper Alloy	Flash	9.4 mm	0.37 in	Male Pins Plug	Gold	4 5	4-40	Polyester Thermoplastic	-55 °C	125 °C
EDAC Inc. 629-9W4-650-2T5	Board Lock Grounding Indents Mounting Brackets	UL94 V-0	125 VDC	Signal and Power	Black	Through Hole Right Angle	Combo D-Sub	2	Solder	3 (DB B) - 9W4	Copper Alloy		9.4 mm	0.37 in	Male Pins Plug	Gold	9	4-40	Polyester Thermoplastic	-55 °C	125 °C	5 A 20 A	4	5	0.76 Ám	30 Áin
EDAC Inc. 629-9W4-250-4TA	Grounding Indents	UL94 V-0	125 VDC	Signal and Power	Black	Through Hole Right Angle	Combo D-Sub	2	Solder	3 (DB B) - 9W4	Copper Alloy	Flash	9.4 mm	0.37 in	Male Pins Plug	Gold	9	Board Side (M3)	Polyester Thermoplastic	-55 °C	125 °C	5 A 40 A	4	5
EDAC Inc. 629-9W4-250-3T4	Grounding Indents Mounting Brackets	UL94 V-0	125 VDC	Signal and Power	Black	Through Hole Right Angle	Combo D-Sub	2	Solder	3 (DB B) - 9W4	Copper Alloy	Flash	9.4 mm	0.37 in	Male Pins Plug	Gold	9	Housing/Shell (4-40)	Polyester Thermoplastic	-55 °C	125 °C	5 A 30 A	4	5
EDAC Inc. 629-9W4-240-2N6	Board Lock Grounding Indents	UL94 V-0	125 VDC	Signal and Power	Black	Through Hole Right Angle	Combo D-Sub	2	Solder	3 (DB B) - 9W4	Copper Alloy	Flash	9.4 mm	0.37 in	Male Pins Plug	Gold	9	4-40	Polyester Thermoplastic	-55 °C	125 °C	5 A 20 A	4	5			Nickel Plated Steel
EDAC Inc. 629-9W4-650-2N2		UL94 V-0	125 VDC	Signal and Power	Black	Through Hole Right Angle	Combo D-Sub	2	Solder	3 (DB B) - 9W4	Copper Alloy		9.4 mm	0.37 in	Male Pins Plug	Gold	9	Housing/Shell (4-40)	Polyester Thermoplastic	-55 °C	125 °C	5 A 20 A	4	5	0.76 Ám	30 Áin	Nickel Plated Steel
EDAC Inc. 629-9W4-640-2T3	Board Lock Grounding Indents Mounting Brackets	UL94 V-0	125 VDC	Signal and Power	Black	Through Hole Right Angle	Combo D-Sub	2	Solder	3 (DB B) - 9W4	Copper Alloy		9.4 mm	0.37 in	Male Pins Plug	Gold	9	Housing/Shell (4-40)	Polyester Thermoplastic	-55 °C	125 °C	5 A 20 A	4	5	0.76 Ám	30 Áin
EDAC Inc. 629-9W4-640-2NE	Grounding Indents Mounting Brackets	UL94 V-0	125 VDC	Signal and Power	Black	Through Hole Right Angle	Combo D-Sub	2	Solder	3 (DB B) - 9W4	Copper Alloy		9.4 mm	0.37 in	Male Pins Plug	Gold	9	M3	Polyester Thermoplastic	-55 °C	125 °C	5 A 20 A	4	5	0.76 Ám	30 Áin	Nickel Plated Steel
EDAC Inc. 629-9W4-650-3T1	Grounding Indents Shielded	UL94 V-0	125 VDC	Signal and Power	Black	Through Hole Right Angle	Combo D-Sub	2	Solder	3 (DB B) - 9W4	Copper Alloy		9.4 mm	0.37 in	Male Pins Plug	Gold	9	Housing/Shell (Unthreaded)	Polyester Thermoplastic	-55 °C	125 °C	5 A 30 A	4	5	0.76 Ám	30 Áin
EDAC Inc. 629-9W4-250-3NE	Grounding Indents Mounting Brackets	UL94 V-0	125 VDC	Signal and Power	Black	Through Hole Right Angle	Combo D-Sub	2	Solder	3 (DB B) - 9W4	Copper Alloy	Flash	9.4 mm	0.37 in	Male Pins Plug	Gold	9	M3	Polyester Thermoplastic	-55 °C	125 °C	5 A 30 A	4	5			Nickel Plated Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2000	$ 17.25

Description

General part information

629-9W4 Series

9 (5 + 4 Power) Position D-Sub, Combo Plug, Male Pins Connector
