MN112BX

Active

Switchcraft Inc.

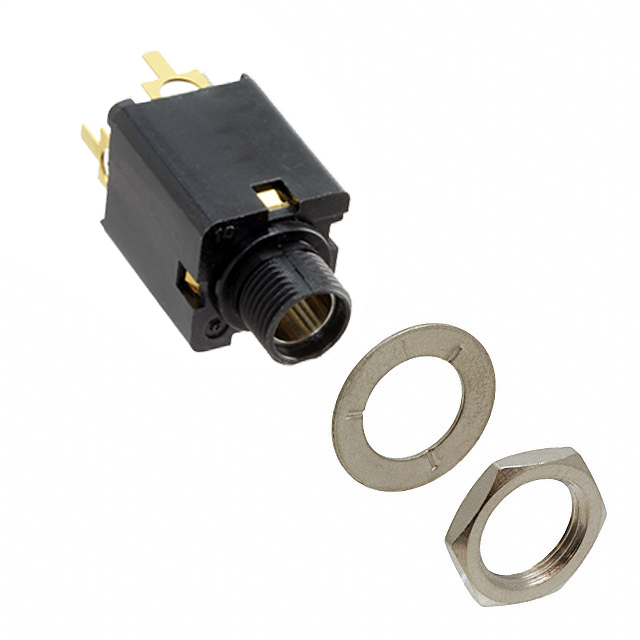

CONN JACK STEREO 6.35MM PNL MNT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN JACK STEREO 6.35MM PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	MN112BX

Actual Diameter [diameter]	0.25 in
Actual Diameter [diameter]	6.35 mm
Body Color	Black
Connector Type	Phone Jack
Contact Material	Brass
Contact Material - Plating	Tin
Features	Thread Lock, Mounting Hardware
Gender	Female
Housing Material	Thermoplastic
Includes	Connector, Washer, Nut
Internal Switch(s)	False
Mounting Type	Through Hole, Panel Mount
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Panel Hole Size	0.375 in
Panel Hole Size	9.52 mm
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder Eyelet(s)
Thread Size	3/8"-32

CONN JACK STEREO 6.35MM PNL MNT

Part	Shielding	Contact Material - Plating	Gender	Connector Type	Signal Lines	Termination	Internal Switch(s)	Features	Contact Material	Thread Size	Housing Material	Includes	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Panel Hole Size	Panel Hole Size	Mounting Type	Actual Diameter [diameter]	Actual Diameter [diameter]	Body Color
Switchcraft Inc. MN112BX	Unshielded	Tin	Female	Phone Jack	Stereo	Solder Eyelet(s)		Mounting Hardware, Thread Lock	Brass	3/8"-32	Thermoplastic	Connector, Nut, Washer	3	3	0.375 in	9.52 mm	Panel Mount, Through Hole	0.25 in	6.35 mm	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
