EEG.3B.330.CLN

Active

LEMO

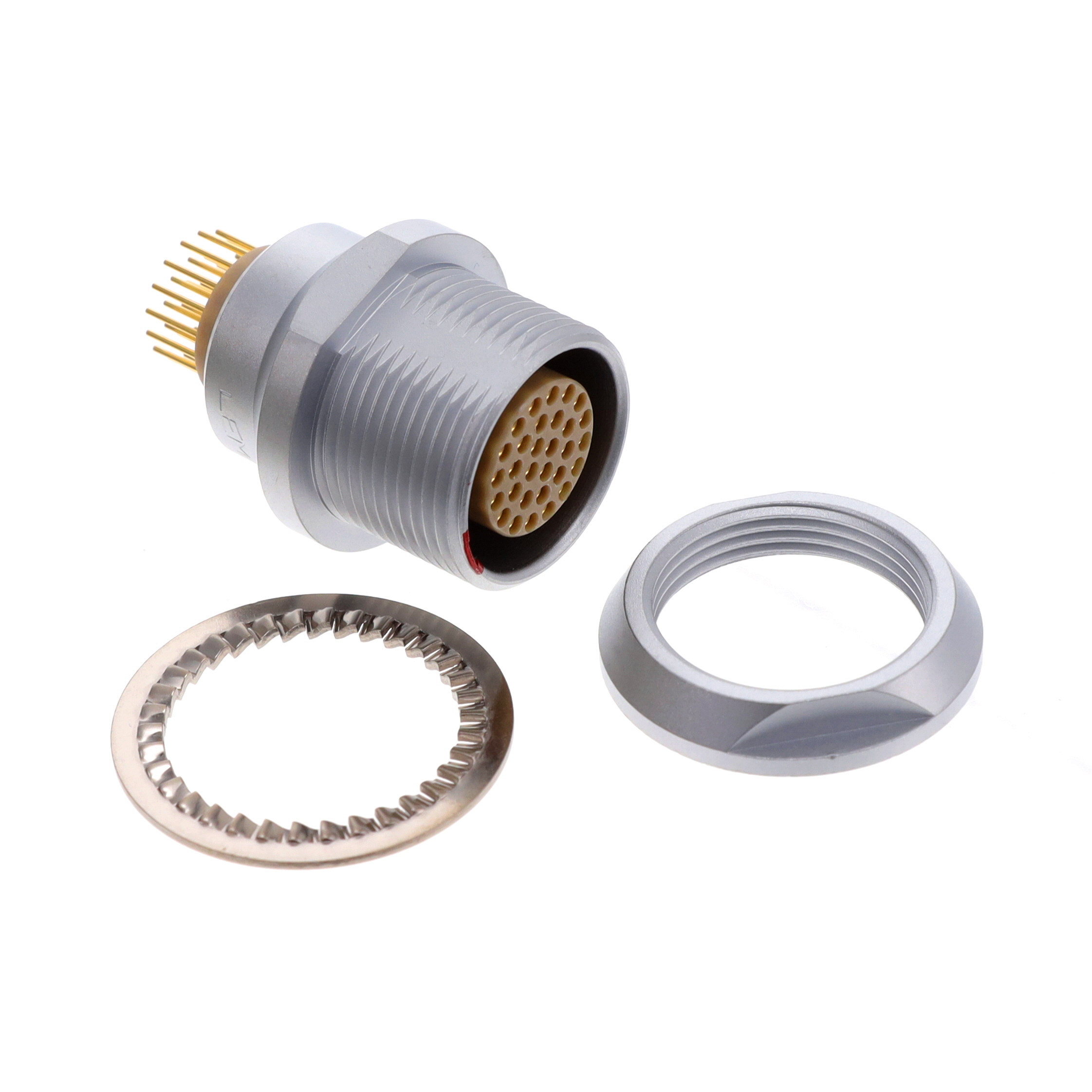

CONN RCPT FMALE 30POS GOLD SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EEG.3B.330.CLN

Active

LEMO

CONN RCPT FMALE 30POS GOLD SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 141.00
		10	$ 129.39
		25	$ 124.41
		50	$ 120.26

Description

General part information

EEG.3B Series

30 Position Circular Connector Receptacle, Female Sockets Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EEG.3B.330.CLN	EEG.3B Series

Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	3.5 A	3.5 - 35 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	30	2 - 30
Number of Positions	-	4 - 9
Number of Positions	-	1 - 2
Number of Positions	-	16
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome, Nickel
Shell Material	Brass	Brass
Shell Size - Insert	330	302 - 846
Shielding	Shielded	Shielded
Termination	Solder	Crimp, Solder

EEG.3B Series

CONN RCPT FMALE 20P SOLDER CUP

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Insert Material	Orientation	Shell Size - Insert	Color	Material Flammability Rating	Contact Finish - Mating	Number of Positions	Shielding	Connector Type	Ingress Protection	Mounting Feature	Shell Material	Shell Finish	Current Rating (Amps)	Contact Material	Primary Material	Termination	Number of Positions [custom]	Number of Positions [custom]	Mounting Type	Number of Positions
