XQAAPA-02-0000-000000Y01

Active

Cree LED

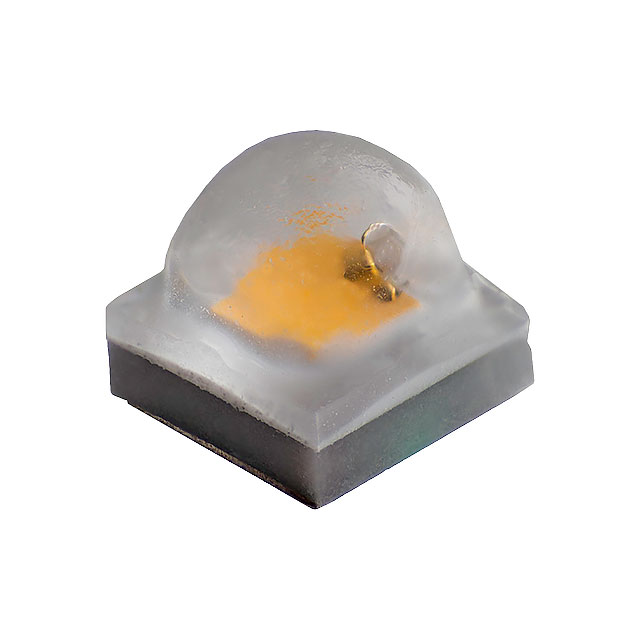

XLAMP XQA LIGHT EMITTING DIODE PC AMBER

Search across all available documentation for this part.

Active

Cree LED

XLAMP XQA LIGHT EMITTING DIODE PC AMBER

Technical Specifications

Parameters and characteristics for this part

Specification	XQAAPA-02-0000-000000Y01

Color	Amber
Current - Max [Max]	250 mA
Current - Test	175 mA
Height - Seated (Max) [Max]	1.73 mm
Height - Seated (Max) [Max] [z]	0.068 "
Lumens/Watt @ Current - Test	55 lm/W
Luminous Flux @ Current/Temperature	33 lm
Mounting Type	Surface Mount
Package / Case	0606, 1616 Metric
Size / Dimension [x]	1.6 mm
Size / Dimension [x]	0.063 in
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	20 °C/W
Viewing Angle	105 °
Voltage - Forward (Vf) (Typ)	3.4 V

XLAMP XQA LIGHT EMITTING DIODE PC AMBER

Part	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Color	Luminous Flux @ Current/Temperature	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Lumens/Watt @ Current - Test	Current - Test	Thermal Resistance of Package [custom]	Supplier Device Package	Package / Case	Current - Max [Max]	Viewing Angle	Mounting Type
Cree LED XQAAPA-02-0000-000000Y01	3.4 V	0.063 in	1.6 mm	0.063 in	1.6 mm	Amber	33 lm	0.068 "	1.73 mm	55 lm/W	175 mA	20 °C/W	SMD	0606, 1616 Metric	250 mA	105 °	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color Xlamp® XQ-A Amber 0606 (1616 Metric)
