Technical Specifications
Parameters and characteristics for this part
| Specification | PI3USB30532ZLCEX |
|---|---|
| -3db Bandwidth | 6 GHz |
| Applications | USB |
| Mounting Type | Surface Mount |
| Multiplexer/Demultiplexer Circuit | 6, 4 |
| Number of Channels [custom] | 6 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

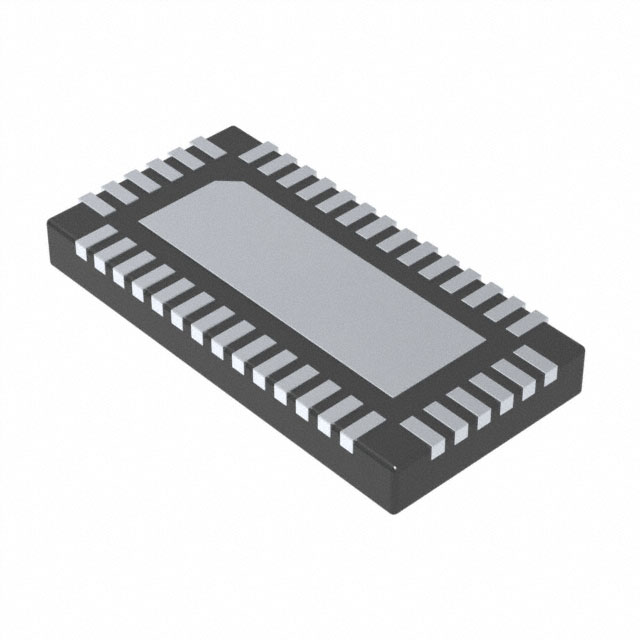

| Package / Case | 40-WFQFN Exposed Pad |
| Supplier Device Package | 40-TQFN (3x6) |
| Voltage - Supply, Single (V+) [Max] | 3.6 V |
| Voltage - Supply, Single (V+) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.92 | |
| 10 | $ 2.62 | |||
| 25 | $ 2.48 | |||
| 100 | $ 2.15 | |||
| 250 | $ 2.04 | |||
| 500 | $ 1.83 | |||
| 1000 | $ 1.54 | |||
| Digi-Reel® | 1 | $ 2.92 | ||
| 10 | $ 2.62 | |||
| 25 | $ 2.48 | |||
| 100 | $ 2.15 | |||
| 250 | $ 2.04 | |||
| 500 | $ 1.83 | |||
| 1000 | $ 1.54 | |||
| Tape & Reel (TR) | 3500 | $ 1.41 | ||
| 7000 | $ 1.36 | |||
Description
General part information
PI3USB30532 Series
The PI3USB30532 is a 6:4 differential channel bi-directional matrix switch solution for switching USB 3.2 Gen 1 and/or DP1.2 signals through USB 3.2 Gen 1 Type-C connector. It multiplexes either 1 lane of USB 3.2 Gen 1, 1 lane of USB 3.2 Gen 1 and 2 channels of DP1.2 or 4 channels of DP1.2 to the USB Type C connector. In addition, AUXHPD channels are also multiplexed to the Type C connector. The PI3USB30532 offers excellent signal integrity for high-speed signals and low power dissipation.
