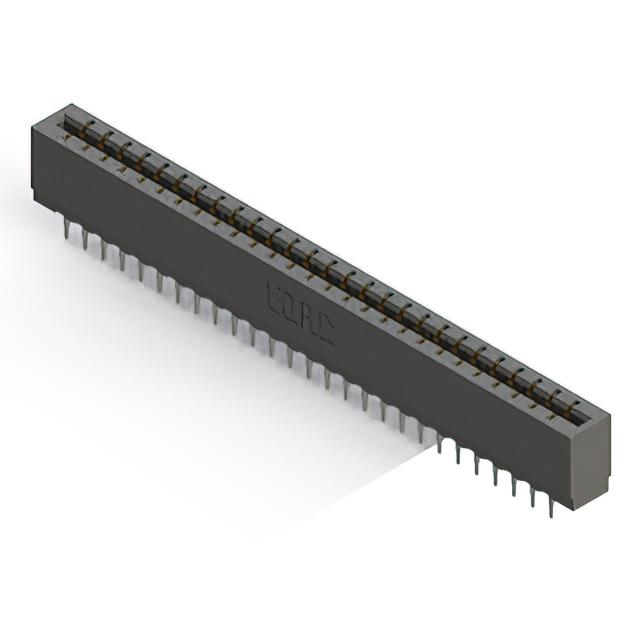

717-054-560-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 54POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
717-054-560-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 54POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 717-054-560-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever, Make Before Break |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 54 |
| Number of Positions/Bay/Row [custom] | 27 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Press-Fit |
| Termination Rows | 2 |
717-054 Series
| Part | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Mounting Type | Termination | Termination Rows | Number of Positions/Bay/Row [custom] | Card Type | Contact Type | Contact Finish | Color | Read Out | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Rows | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Through Hole | Press-Fit | 2 | 27 | Non Specified - Dual Edge | Cantilever | Gold | Black | Dual | Polyester Thermoplastic | 0.76 Ám | 30 Áin | -40 °C | 105 ░C | Copper Alloy | 2 | 54 |
EDAC Inc. | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Through Hole | Press-Fit | 2 | 27 | Non Specified - Dual Edge | Cantilever | Gold | Black | Dual | Polyester Thermoplastic | 0.76 Ám | 30 Áin | -40 °C | 105 ░C | Copper Alloy | 2 | 54 |
EDAC Inc. | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Through Hole | Press-Fit Wire Wrap | 2 | 27 | Non Specified - Dual Edge | Cantilever | Gold | Black | Dual | Polyester Thermoplastic | 0.76 Ám | 30 Áin | -40 °C | 105 ░C | Copper Alloy | 2 | 54 |
EDAC Inc. | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Through Hole | Press-Fit | 2 | 27 | Non Specified - Dual Edge | Cantilever Make Before Break | Gold | Black | Dual | Polyester Thermoplastic | 0.76 Ám | 30 Áin | -40 °C | 105 ░C | Copper Alloy | 2 | 54 |
EDAC Inc. | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Through Hole | Press-Fit | 2 | 27 | Non Specified - Dual Edge | Cantilever | Gold | Black | Dual | Polyester Thermoplastic | 0.76 Ám | 30 Áin | -40 °C | 105 ░C | Copper Alloy | 2 | 54 |
EDAC Inc. | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Through Hole | Press-Fit Wire Wrap | 2 | 27 | Non Specified - Dual Edge | Cantilever | Gold | Black | Dual | Polyester Thermoplastic | 0.76 Ám | 30 Áin | -40 °C | 105 ░C | Copper Alloy | 2 | 54 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 9.77 | |
Description
General part information
717-054 Series
54 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
