PE9619
ActivePasternack
75 OHM MINI SMB JACK TO 75 OHM B
PE9619
ActivePasternack
75 OHM MINI SMB JACK TO 75 OHM B
Description
General part information
PE9619

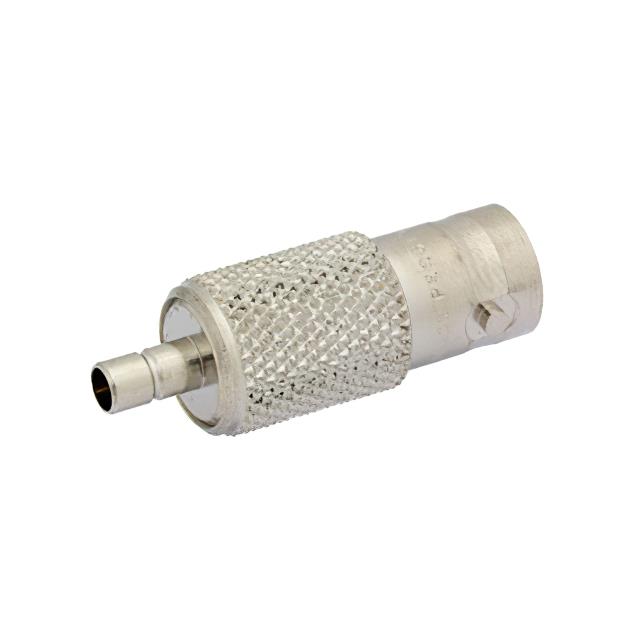

Adapter Coaxial Connector SMB, Mini Jack, Male Pin To BNC Jack, Female Socket 75 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE9619 |
|---|---|
| Adapter Series | SMB, Mini to BNC |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Mini Jack, Male Pin, SMB |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | BNC Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock, Snap-On |
| Impedance | 75 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Straight |
