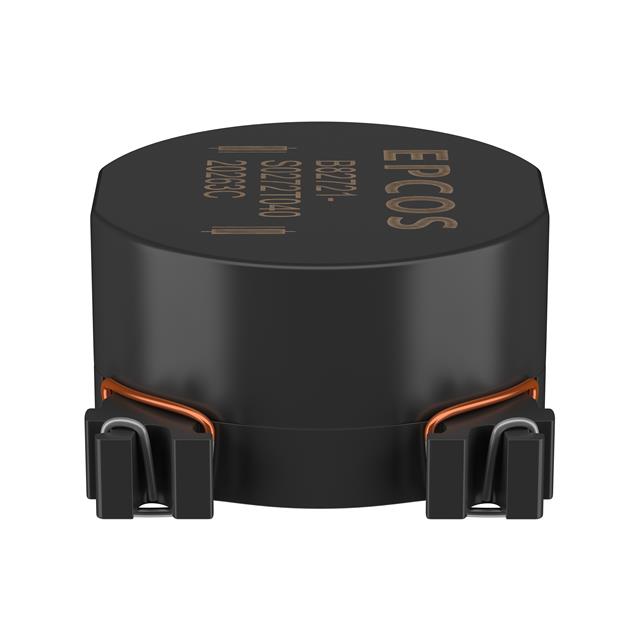

B82721S0272T040
ActiveEPCOS - TDK Electronics
CMC 3MH 2.7A 2LN SMD
B82721S0272T040
ActiveEPCOS - TDK Electronics
CMC 3MH 2.7A 2LN SMD
Description
General part information
B82721S0272T040
3 mH @ 10 kHz 2 Line Common Mode Choke Surface Mount 2.7A DCR 65mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | B82721S0272T040 |
|---|---|
| Current Rating (Max) | 2.7 A |
| DC Resistance (DCR) (Max) | 65 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.398 in |
| Inductance | 3 mH |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.76 in |
| Size / Dimension Width | 0.67 in |
| Voltage Rating - AC | 48 V |
| Voltage Rating - DC | 80 VDC |
