1899045
ActivePhoenix Contact
TERM BLK HEADER 8POS GREEN
1899045
ActivePhoenix Contact
TERM BLK HEADER 8POS GREEN
Description
General part information
1899045

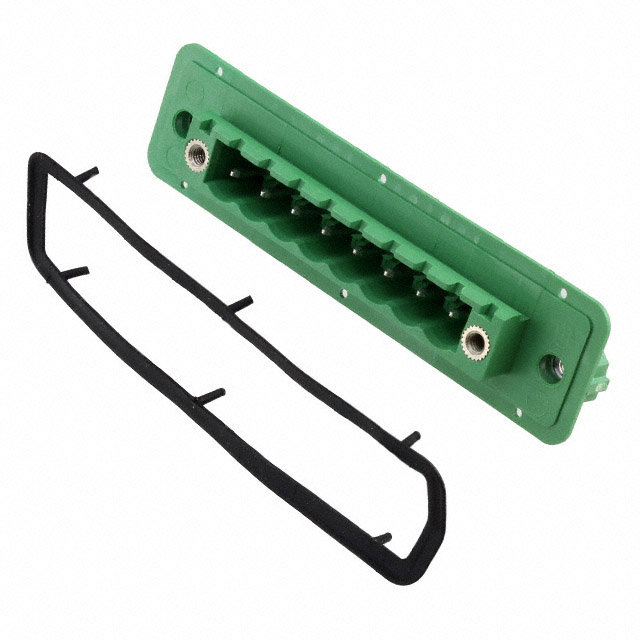

8 Position Terminal Block Header, Male Pins Green
Technical Specifications
Parameters and characteristics for this part
| Specification | 1899045 |
|---|---|
| Color | Green |
| Current - UL | 10 A |
| Features | Threaded Mate Lock, Sealing Gasket |
| Front Panel Wire Connection (Method) | Header, Male Pins |
| Number of Levels | 1 |
| Panel Mount Type | Screw Mount - Rear Flange |
| Pitch | 5.08 mm |
| Positions Per Level | 8 |
| Rear Panel Wire Connection | PCB Pins - Right Angle |
| Voltage - UL | 300 V |
| Width | 2.772 in |
