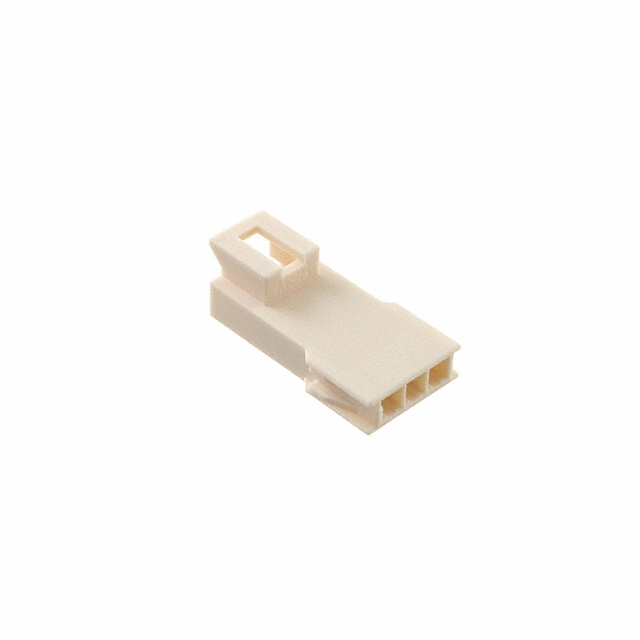

Specification	2002772103

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Glow Wire Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	3
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.098 in

200277 Series

Nano-Fit Plug Housing, TPA Capable, 2.50mm Pitch, Single Row, 7 Circuits, Black, Panel Mount, Glow-Wire Capable

Part	Note	Connector Type	Contact Termination	Color	Pitch	Insulation Material	Mounting Type	Contact Type	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Number of Rows	Features
Molex 2002772107	Contacts Not Included	Plug	Crimp	Natural	0.098 in	Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	Male Pin	Latch Holder	-40 °C	105 °C	7	1	Glow Wire Compliant
Molex 2002772203	Contacts Not Included	Plug	Crimp	Natural	0.098 in	Nylon 6/6 Polyamide (PA66)	Panel Mount Snap-In	Male Pin	Latch Holder	-40 °C	105 °C	3	1	Glow Wire Compliant
Molex 2002771208	Contacts Not Included	Plug	Crimp	Black	0.098 in	Nylon 6/6 Polyamide (PA66)	Panel Mount Snap-In	Male Pin	Latch Holder	-40 °C	105 °C	8	1	Glow Wire Compliant
Molex 2002772205	Contacts Not Included	Plug	Crimp	Natural	0.098 in	Nylon 6/6 Polyamide (PA66)	Panel Mount Snap-In	Male Pin	Latch Holder	-40 °C	105 °C	5	1	Glow Wire Compliant
Molex 2002771102	Contacts Not Included	Plug	Crimp	Black	0.098 in	Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	Male Pin	Latch Holder	-40 °C	105 °C	2	1	Glow Wire Compliant
Molex 2002771107	Contacts Not Included	Plug	Crimp	Black	0.098 in	Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	Male Pin	Latch Holder	-40 °C	105 °C	7	1	Glow Wire Compliant
Molex 2002771105	Contacts Not Included	Plug	Crimp	Black	0.098 in	Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	Male Pin	Latch Holder	-40 °C	105 °C	5	1	Glow Wire Compliant
Molex 2002771207	Contacts Not Included	Plug	Crimp	Black	0.098 in	Nylon 6/6 Polyamide (PA66)	Panel Mount Snap-In	Male Pin	Latch Holder	-40 °C	105 °C	7	1	Glow Wire Compliant
Molex 2002771202	Contacts Not Included	Plug	Crimp	Black	0.098 in	Nylon 6/6 Polyamide (PA66)	Panel Mount Snap-In	Male Pin	Latch Holder	-40 °C	105 °C	2	1	Glow Wire Compliant
Molex 2002772204	Contacts Not Included	Plug	Crimp	Natural	0.098 in	Nylon 6/6 Polyamide (PA66)	Panel Mount Snap-In	Male Pin	Latch Holder	-40 °C	105 °C	4	1	Glow Wire Compliant
