TS2L3F20C

Active

Switchcraft Inc.

CONN RCPT FMALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	TS2L3F20C

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Backshell Material, Plating	Copper Alloy, Nickel
Cable Opening [Max] [diameter]	5.49 mm
Cable Opening [Max] [diameter]	0.216 in
Cable Opening [Min] [diameter]	4.57 mm
Cable Opening [Min] [diameter]	0.18 in
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Backshell
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	125 VAC

CONN RCPT FMALE 3POS GOLD CRIMP

Part	Termination	Backshell Material, Plating	Insert Material	Connector Type	Contact Finish - Mating	Color	Shell Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Ingress Protection	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Orientation	Shell Material	Features	Applications	Shielding	Voltage Rating	Mounting Type	Primary Material
Switchcraft Inc. TS2L3F20C	Crimp, Solder Cup	Copper Alloy, Nickel	Liquid Crystal Polymer (LCP)	Receptacle, Female Sockets	Gold	Silver	Electroless Nickel	135 °C	-40 °C	Copper Alloy	IP66, IP67, IP68	5.49 mm	4.57 mm	0.18 in	0.216 in	Keyed	Copper Alloy	Backshell	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Shielded	125 VAC	Free Hanging (In-Line)	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

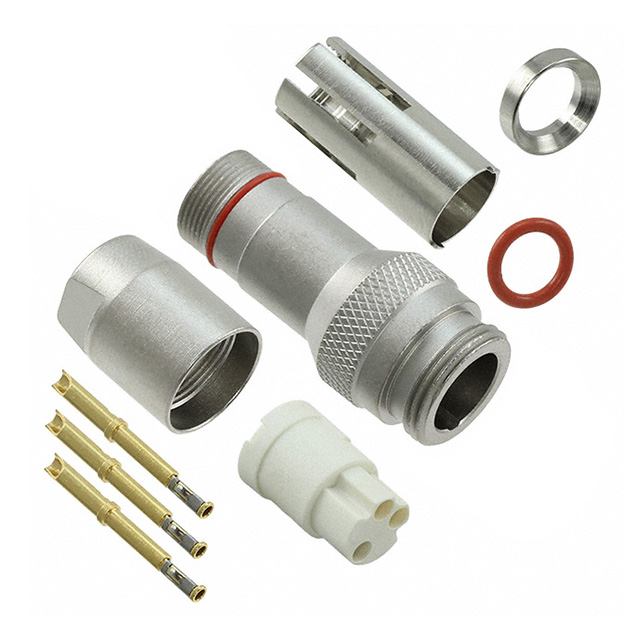

3 Position Circular Connector Receptacle, Female Sockets Crimp or Solder Cup
