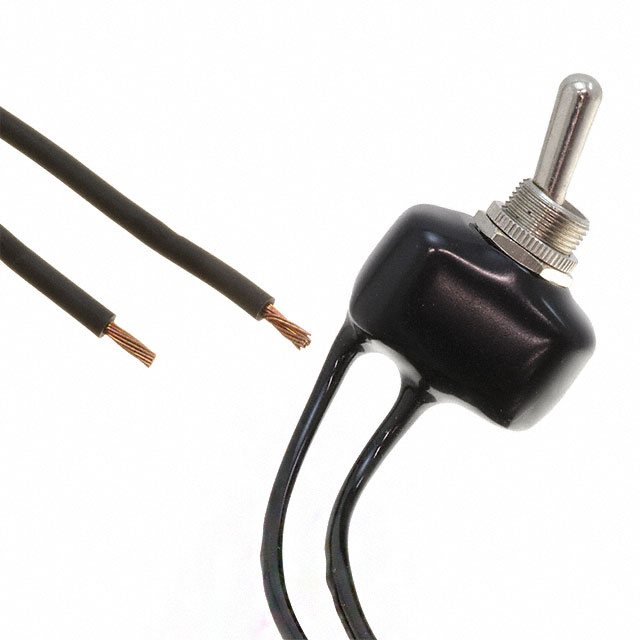

5582-10

Active

Cole Hersee

SWITCH TOGGLE SPST 25A 12V

Search across all available documentation for this part.

Active

Cole Hersee

SWITCH TOGGLE SPST 25A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	5582-10

Actuator Length [x]	17.46 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPST
Current Rating (Amps)	25 A
Illumination	Non-Illuminated
Panel Cutout Dimensions [diameter]	11.9 mm
Switch Function	On-Off
Termination Style	Wire Leads
Voltage Rating - DC	12 V

SWITCH TOGGLE SPST 25A 12V

Part	Actuator Type	Circuit	Actuator Length [x]	Actuator Material	Switch Function	Termination Style	Voltage Rating - DC	Bushing Thread	Panel Cutout Dimensions [diameter]	Illumination	Current Rating (Amps)
Cole Hersee 5582-10	Standard Round	SPST	17.46 mm	Brass, Nickel Plated	On-Off	Wire Leads	12 V	15/32-32	11.9 mm	Non-Illuminated	25 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPST Panel Mount
