1804
ActiveKeystone Electronics

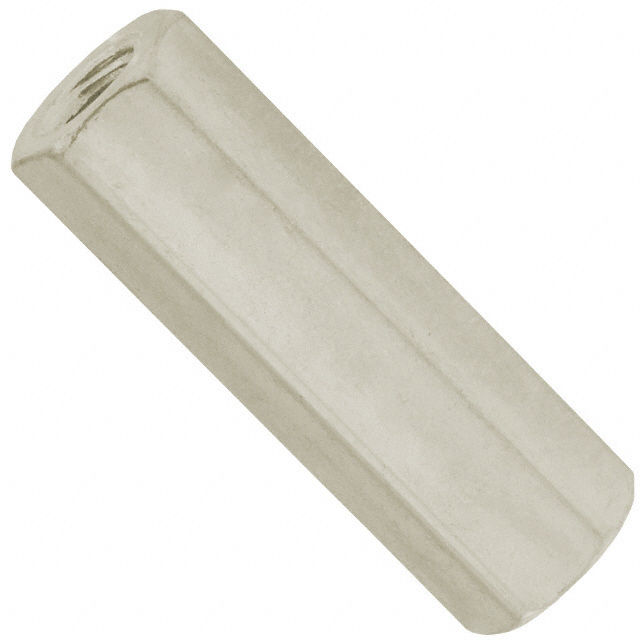

HEX STANDOFF #4-40 BRASS 5/8"
1804
ActiveKeystone Electronics
HEX STANDOFF #4-40 BRASS 5/8"
Description
General part information
1804
Hex Standoff Threaded #4-40 Brass 0.625" (15.88mm) 5/8"
Technical Specifications
Parameters and characteristics for this part
| Specification | 1804 |
|---|---|
| Between Board Height | 0.625 in |
| Diameter - Outside | 0.188 in |
| Diameter - Outside (Measured) | 0.188 in |
| Diameter - Outside (Nominal) | 0.1875 in |
| Diameter - Outside Shape | Hex |
| Gender | Female |
| Length - Overall | 0.625 in |
| Material | Brass |
| Plating | Zinc |
| Screw Thread Size | #4-40 |
| Thread Type | Hex |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
