6-102570-0 - 1-10xxxx-0, 103167-9, 6-10xxxx-0, 5-103167-9

6-102570-0

Active
TE Connectivity AMP Connectors

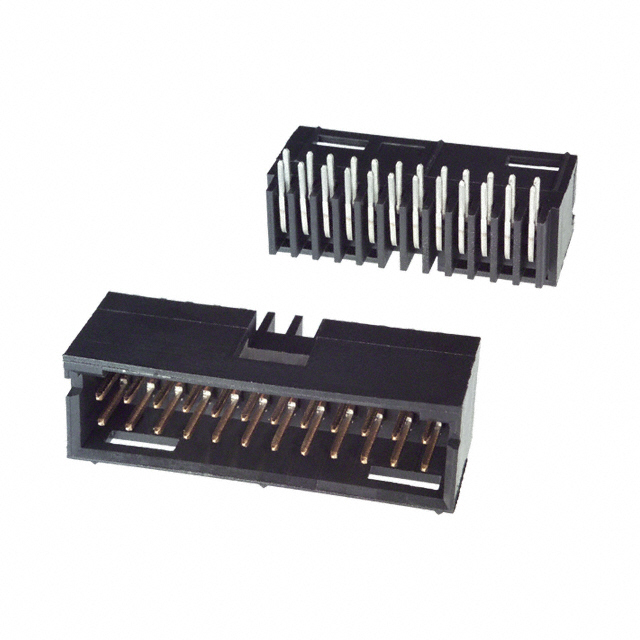

CONN HEADER R/A 24POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

6-102570-0 - 1-10xxxx-0, 103167-9, 6-10xxxx-0, 5-103167-9

6-102570-0

Active
TE Connectivity AMP Connectors

CONN HEADER R/A 24POS 2.54MM

Deep-Dive with AI

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification6-102570-0102570 Series
Connector TypeHeaderHeader
Contact Finish - MatingGoldGold
Contact Finish - PostTinTin, Tin-Lead
Contact Finish Thickness - Mating15 µin15 µin
Contact Finish Thickness - Mating0.38 µm0.38 µm
Contact Finish Thickness - Post2.54 µm2.54 µm
Contact Finish Thickness - Post100 µin100 µin
Contact Length - Mating [x]0.318 "0.318 "
Contact Length - Mating [x]8.08 mm8.08 mm
Contact Length - Post [x]0.135 in0.135 in
Contact Length - Post [x]3.43 mm3.43 mm
Contact MaterialPhosphor BronzePhosphor Bronze
Contact ShapeSquareSquare
Contact TypeMale PinMale Pin
Current Rating (Amps)3 A3 A
Fastening TypeDetent LockDetent Lock
Insulation ColorBlackBlack
Insulation Height0.4 in0.4 in
Insulation Height10.16 mm10.16 mm
Insulation MaterialThermoplasticThermoplastic
Material Flammability RatingUL94 V-0UL94 V-0
Mounting TypeThrough Hole, Right AngleThrough Hole, Right Angle
Number of Positions248 - 40
Number of Positions LoadedAllAll
Number of Rows22
Operating Temperature [Max]105 ░C105 ░C
Operating Temperature [Min]-65 ░C-65 ░C
Pitch - Mating0.1 in0.1 in
Pitch - Mating2.54 mm2.54 mm
Row Spacing - Mating [x]2.54 mm2.54 mm
Row Spacing - Mating [x]0.1 in0.1 in
ShroudingShrouded - 4 WallShrouded - 4 Wall
StyleBoard to Board, CableBoard to Board, Cable
TerminationSolderSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 896$ 7.06

102570 Series

CONN HEADER R/A 8POS 2.54MM

PartShroudingCurrent Rating (Amps)Row Spacing - Mating [x]Row Spacing - Mating [x]Fastening TypeInsulation MaterialNumber of PositionsContact MaterialContact Length - Mating [x]Contact Length - Mating [x]Contact Finish - MatingInsulation ColorContact ShapeTerminationNumber of RowsPitch - MatingPitch - MatingContact Finish Thickness - PostContact Finish Thickness - PostInsulation HeightInsulation HeightMaterial Flammability RatingConnector TypeContact Finish - PostContact TypeContact Finish Thickness - MatingContact Finish Thickness - MatingNumber of Positions LoadedOperating Temperature [Min]Operating Temperature [Max]StyleContact Length - Post [x]Contact Length - Post [x]Mounting Type
TE Connectivity AMP Connectors
5-102570-2
Shrouded - 4 Wall
3 A
2.54 mm
0.1 in
Detent Lock
Thermoplastic
8
Phosphor Bronze
0.318 "
8.08 mm
Gold
Black
Square
Solder
2
0.1 in
2.54 mm
2.54 µm
100 µin
0.4 in
10.16 mm
UL94 V-0
Header
Tin
Male Pin
15 µin
0.38 µm
All
-65 ░C
105 ░C
Board to Board, Cable
0.135 in
3.43 mm
Through Hole, Right Angle
TE Connectivity AMP Connectors
1-102570-0
Shrouded - 4 Wall
3 A
2.54 mm
0.1 in
Detent Lock
Thermoplastic
24
Phosphor Bronze
0.318 "
8.08 mm
Gold
Black
Square
Solder
2
0.1 in
2.54 mm
2.54 µm
100 µin
0.4 in
10.16 mm
UL94 V-0
Header
Tin-Lead
Male Pin
15 µin
0.38 µm
All
-65 ░C
105 ░C
Board to Board, Cable
0.135 in
3.43 mm
Through Hole, Right Angle
TE Connectivity AMP Connectors
6-102570-0
Shrouded - 4 Wall
3 A
2.54 mm
0.1 in
Detent Lock
Thermoplastic
24
Phosphor Bronze
0.318 "
8.08 mm
Gold
Black
Square
Solder
2
0.1 in
2.54 mm
2.54 µm
100 µin
0.4 in
10.16 mm
UL94 V-0
Header
Tin
Male Pin
15 µin
0.38 µm
All
-65 ░C
105 ░C
Board to Board, Cable
0.135 in
3.43 mm
Through Hole, Right Angle
TE Connectivity AMP Connectors
5-102570-1
Shrouded - 4 Wall
3 A
2.54 mm
0.1 in
Detent Lock
Thermoplastic
40
Phosphor Bronze
0.318 "
8.08 mm
Gold
Black
Square
Solder
2
0.1 in
2.54 mm
2.54 µm
100 µin
0.4 in
10.16 mm
UL94 V-0
Header
Tin
Male Pin
15 µin
0.38 µm
All
-65 ░C
105 ░C
Board to Board, Cable
0.135 in
3.43 mm
Through Hole, Right Angle
TE Connectivity AMP Connectors
102570-1
Shrouded - 4 Wall
3 A
2.54 mm
0.1 in
Detent Lock
Thermoplastic
40
Phosphor Bronze
0.318 "
8.08 mm
Gold
Black
Square
Solder
2
0.1 in
2.54 mm
2.54 µm
100 µin
0.4 in
10.16 mm
UL94 V-0
Header
Tin-Lead
Male Pin
15 µin
0.38 µm
All
-65 ░C
105 ░C
Board to Board, Cable
0.135 in
3.43 mm
Through Hole, Right Angle
TE Connectivity AMP Connectors
5-102570-3
Shrouded - 4 Wall
3 A
2.54 mm
0.1 in
Detent Lock
Thermoplastic
10
Phosphor Bronze
0.318 "
8.08 mm
Gold
Black
Square
Solder
2
0.1 in
2.54 mm
2.54 µm
100 µin
0.4 in
10.16 mm
UL94 V-0
Header
Tin
Male Pin
15 µin
0.38 µm
All
-65 ░C
105 ░C
Board to Board, Cable
0.135 in
3.43 mm
Through Hole, Right Angle
TE Connectivity AMP Connectors
1-102570-1
Shrouded - 4 Wall
3 A
2.54 mm
0.1 in
Detent Lock
Thermoplastic
26
Phosphor Bronze
0.318 "
8.08 mm
Gold
Black
Square
Solder
2
0.1 in
2.54 mm
2.54 µm
100 µin
0.4 in
10.16 mm
UL94 V-0
Header
Tin-Lead
Male Pin
15 µin
0.38 µm
All
-65 ░C
105 ░C
Board to Board, Cable
0.135 in
3.43 mm
Through Hole, Right Angle
TE Connectivity AMP Connectors
6-102570-1
Shrouded - 4 Wall
3 A
2.54 mm
0.1 in
Detent Lock
Thermoplastic
26
Phosphor Bronze
0.318 "
8.08 mm
Gold
Black
Square
Solder
2
0.1 in
2.54 mm
2.54 µm
100 µin
0.4 in
10.16 mm
UL94 V-0
Header
Tin
Male Pin
15 µin
0.38 µm
All
-65 ░C
105 ░C
Board to Board, Cable
0.135 in
3.43 mm
Through Hole, Right Angle

Description

General part information

102570 Series

Connector Header Through Hole, Right Angle 24 position 0.100" (2.54mm)
