601D407F075GT2
ActiveVishay Dale

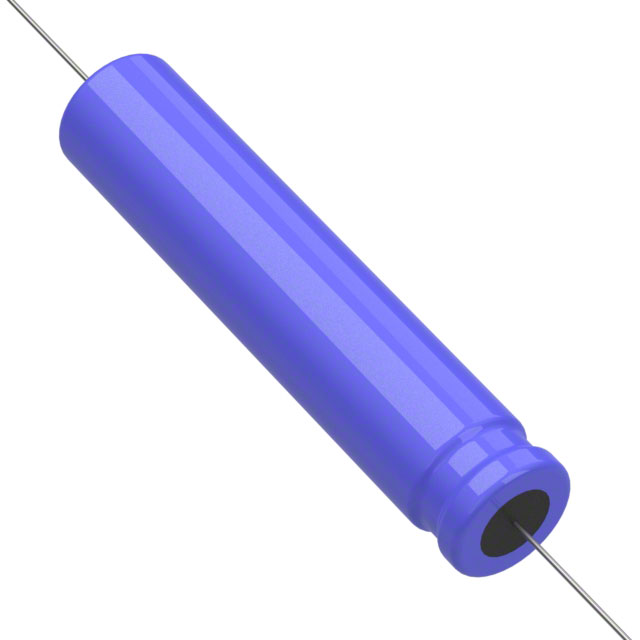

CAP ALUM 400UF 75V AXIAL TH
601D407F075GT2
ActiveVishay Dale
CAP ALUM 400UF 75V AXIAL TH
Description
General part information
601D407F075GT2
400 µF 75 V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 601D407F075GT2 |
|---|---|
| Applications | General Purpose |
| Capacitance | 400 µF |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Size / Dimension Diameter | 0.75 in |
| Size / Dimension Length | 3.625 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 75 V |
