C180T-24

Active

Orion Fans

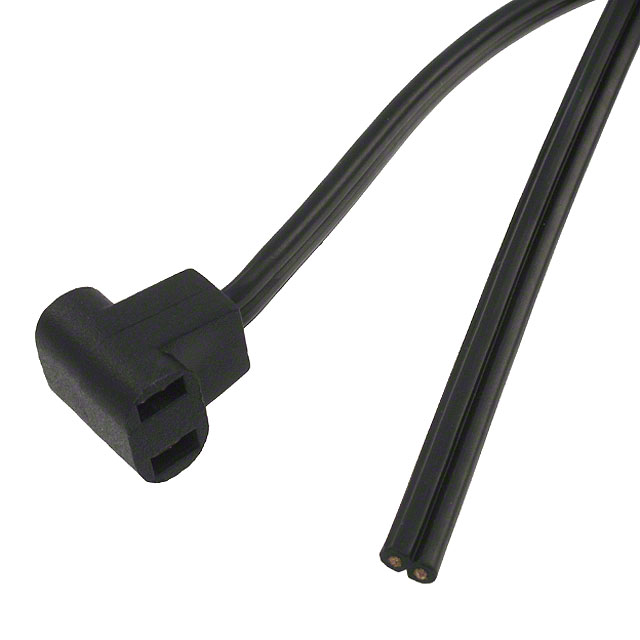

C180, "T" HEAD, 24IN LEAD, 10A 125/250VAC

Search across all available documentation for this part.

Active

Orion Fans

C180, "T" HEAD, 24IN LEAD, 10A 125/250VAC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C180T-24	C180T Series

1st Connector	Fan Terminal Receptacle, T-Style	Fan Terminal Receptacle, T-Style
2nd Connector	Open Wires	Open Wires
Approval Agency Marking	cURus, TUV	cURus, TUV
Cord Type	SPT-1	SPT-1
Length	-	1.83 - 304.8 cm
Length	-	36 - 72 in
Length [x]	609.6 mm	609.6 mm
Length [x]	24 in	12 - 24 in
Number of Conductors	2	2
Style	Female Receptacle to Cable	Female Receptacle to Cable
Wire Gauge	18 AWG	18 AWG

C180, "T" HEAD, 24IN LEAD, 10A 125/250VAC

Part	2nd Connector	Wire Gauge	Number of Conductors	Style	Length [x]	Length [x]	1st Connector	Cord Type	Approval Agency Marking	Length	Length
Orion Fans C180T-24	Open Wires	18 AWG	2	Female Receptacle to Cable	609.6 mm	24 in	Fan Terminal Receptacle, T-Style	SPT-1	cURus, TUV
Orion Fans C180T-36	Open Wires	18 AWG	2	Female Receptacle to Cable			Fan Terminal Receptacle, T-Style	SPT-1	cURus, TUV	91.44 cm	36 in
Orion Fans C180T-12	Open Wires	18 AWG	2	Female Receptacle to Cable		12 in	Fan Terminal Receptacle, T-Style	SPT-1	cURus, TUV	304.8 mm
Orion Fans C180T-72	Open Wires	18 AWG	2	Female Receptacle to Cable			Fan Terminal Receptacle, T-Style	SPT-1	cURus, TUV	1.83 m	72 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.25
Newark	Each	1000	$ 1.93
		1000	$ 1.93

General part information

Fan Power Cord Fan Terminal Receptacle, T-Style 24.0" (609.6mm) Open Wires
