Description
General part information

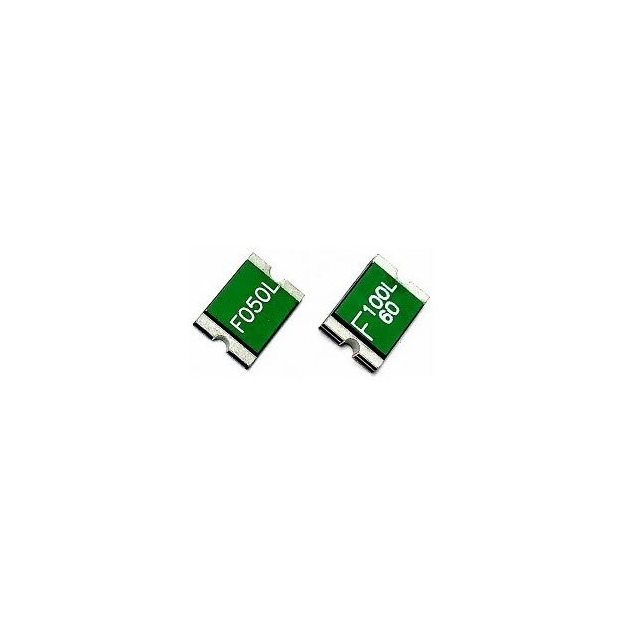

MPTS1812L050
Polymeric PTC Resettable Fuse 16V 500 mA Ih Surface Mount 1812 (4532 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | MPTS1812L050 |
|---|---|
| Approval Agency | cUL, TUV, UL |
| Current - Hold (Ih) (Max) | 500 mA |
| Current - Max | 100 A |
| Current - Trip (It) | 1 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1812 (4532 Metric) |
| Resistance - Initial (Ri) (Min) | 150 mOhms |
| Resistance - Post Trip (R1) (Max) | 1 Ohms |
| Size / Dimension Length | 0.179 in |
| Size / Dimension Width | 0.128 in |
| Thickness (Max) | 0.03 in |
| Time to Trip | 150 ms |
| Type | Polymeric |
| Voltage - Max | 16 V |
