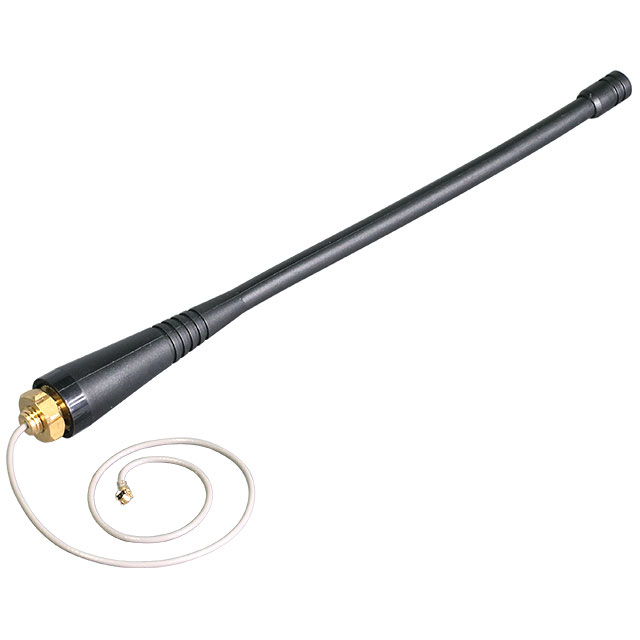

ANT-410-PW-QW-UFL
ActiveTE Connectivity Linx
RF ANT 5G 410MHZ WHIP STR UFL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-410-PW-QW-UFL |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | LTE, Cellular, NR, mMTC, 5G, NB-IoT |
| Features | Cable |
| Features | 216 mm |
| Frequency (Center/Band) | 418 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 430 MHz |
| Frequency Range [Min] | 410 MHz |
| Gain | 4.1 dBi |
| Height (Max) [Max] [z] | 6.98 in |
| Height (Max) [Max] [z] | 171.2 mm |
| Mounting Type | Solder |
| Number of Bands | 1 |
| Power - Max [Max] | 10 W |
| Return Loss | 10.9 dB |
| RF Family/Standard | Cellular |
| Termination | IPEX MHF1, U.FL (UMCC) |
| VSWR | 1.8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 100 | $ 10.69 | |
Description
General part information
ANT-410-PW-QW-UFL
RF ANTENNA 5G, Cellular, LTE, NR, mMTC, NB-IoT Whip, Straight U.FL (UMCC), IPEX MHF1 Solder
