2200/22SGR-1000

Active

Daburn Electronics

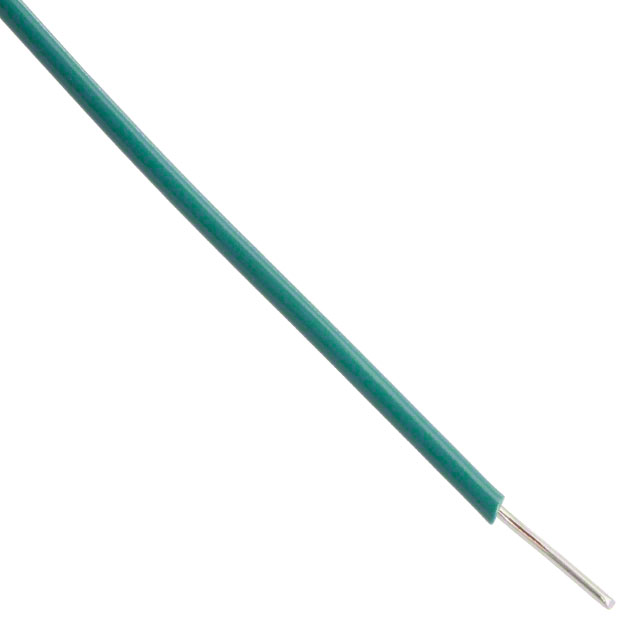

HOOK-UP SOLID 22AWG GRN 1000'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2200/22SGR-1000

Active

Daburn Electronics

HOOK-UP SOLID 22AWG GRN 1000'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 91.21
		2	$ 86.81
		3	$ 84.31
		5	$ 81.26
		7	$ 79.30
		10	$ 77.27
		25	$ 72.24
		50	$ 68.62
		100	$ 65.15

Description

General part information

2200/22 Series

22 AWG Hook-Up Wire Solid Green 600V 1000.0' (304.8m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2200/22SGR-1000	2200/22 Series

Cable Type	Hook-Up	Hook-Up
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand	Solid	Solid
Conductor Strand	-	7
Conductor Strand	-	30 AWG
Features	Abrasion Resistant	Abrasion Resistant
Jacket (Insulation) Diameter [diameter]	0.054 in	0.051 - 0.054 in
Jacket (Insulation) Diameter [diameter]	1.37 mm	1.3 - 1.37 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (XLPVC), Irradiated	Poly-Vinyl Chloride (XLPVC), Irradiated
Jacket (Insulation) Thickness	0.25 mm	0.25 mm
Jacket (Insulation) Thickness	0.01 in	0.01 in
Jacket Color	Green	Yellow, Violet, Gray, Red, Green, Blue, Brown, Orange
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	30.5 m
Length	-	100 ft
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Qualification	MIL-W-16878 Type B	MIL-W-16878 Type B
Ratings	UL Style 1429	UL Style 1429
Voltage	600 V	600 V
Wire Gauge	22 AWG	22 AWG

2200/22 Series

HOOK-UP SOLID 22AWG YELLOW 1000'

Part	Jacket (Insulation) Material	Qualification	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand	Cable Type	Jacket Color	Conductor Material	Features	Wire Gauge	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]
Daburn Electronics 2200/22SYL-1000	Poly-Vinyl Chloride (XLPVC), Irradiated	MIL-W-16878 Type B	0.054 in	1.37 mm	0.25 mm	0.01 in	1000 ft	304.8 m	600 V	105 ░C	-55 °C	Solid	Hook-Up	Yellow	Copper, Tinned	Abrasion Resistant	22 AWG	UL Style 1429
Daburn Electronics 2200/22VI-1000	Poly-Vinyl Chloride (XLPVC), Irradiated	MIL-W-16878 Type B	0.051 in	1.3 mm	0.25 mm	0.01 in	1000 ft	304.8 m	600 V	105 ░C	-55 °C		Hook-Up	Violet	Copper, Tinned	Abrasion Resistant	22 AWG	UL Style 1429	7	30 AWG
Daburn Electronics 2200/22SVI-1000	Poly-Vinyl Chloride (XLPVC), Irradiated	MIL-W-16878 Type B	0.054 in	1.37 mm	0.25 mm	0.01 in	1000 ft	304.8 m	600 V	105 ░C	-55 °C	Solid	Hook-Up	Violet	Copper, Tinned	Abrasion Resistant	22 AWG	UL Style 1429
Daburn Electronics 2200/22GY-1000	Poly-Vinyl Chloride (XLPVC), Irradiated	MIL-W-16878 Type B	0.051 in	1.3 mm	0.25 mm	0.01 in	1000 ft	304.8 m	600 V	105 ░C	-55 °C		Hook-Up	Gray	Copper, Tinned	Abrasion Resistant	22 AWG	UL Style 1429	7	30 AWG
Daburn Electronics 2200/22YL-100	Poly-Vinyl Chloride (XLPVC), Irradiated	MIL-W-16878 Type B	0.051 in	1.3 mm	0.25 mm	0.01 in			600 V	105 ░C	-55 °C		Hook-Up	Yellow	Copper, Tinned	Abrasion Resistant	22 AWG	UL Style 1429	7	30 AWG	30.5 m	100 ft
Daburn Electronics 2200/22SRD-100	Poly-Vinyl Chloride (XLPVC), Irradiated	MIL-W-16878 Type B	0.054 in	1.37 mm	0.25 mm	0.01 in			600 V	105 ░C	-55 °C	Solid	Hook-Up	Red	Copper, Tinned	Abrasion Resistant	22 AWG	UL Style 1429			30.5 m	100 ft
Daburn Electronics 2200/22GR-100	Poly-Vinyl Chloride (XLPVC), Irradiated	MIL-W-16878 Type B	0.051 in	1.3 mm	0.25 mm	0.01 in			600 V	105 ░C	-55 °C		Hook-Up	Green	Copper, Tinned	Abrasion Resistant	22 AWG	UL Style 1429	7	30 AWG	30.5 m	100 ft
Daburn Electronics 2200/22SVI-100	Poly-Vinyl Chloride (XLPVC), Irradiated	MIL-W-16878 Type B	0.054 in	1.37 mm	0.25 mm	0.01 in			600 V	105 ░C	-55 °C	Solid	Hook-Up	Violet	Copper, Tinned	Abrasion Resistant	22 AWG	UL Style 1429			30.5 m	100 ft
Daburn Electronics 2200/22SBU-1001	Poly-Vinyl Chloride (XLPVC), Irradiated	MIL-W-16878 Type B	0.054 in	1.37 mm	0.25 mm	0.01 in	1000 ft	304.8 m	600 V	105 ░C	-55 °C	Solid	Hook-Up	Blue	Copper, Tinned	Abrasion Resistant	22 AWG	UL Style 1429
Daburn Electronics 2200/22SWH-100	Poly-Vinyl Chloride (XLPVC), Irradiated	MIL-W-16878 Type B	0.054 in	1.37 mm	0.25 mm	0.01 in			600 V	105 ░C	-55 °C	Solid	Hook-Up		Copper, Tinned	Abrasion Resistant	22 AWG	UL Style 1429			30.5 m	100 ft
